FBZ Full Automatic Metal Paint Pail Drum Welding Machine

FBZ Full Automatic Metal Paint Pail Drum Welding Machine

$36000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,D/P,T/T
Port:	Shanghai

Product Description

Product Name:FBZ full automatic metal paint pail drum square tin can welding machine

Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.

3 Piece Metal Packaging Industry

Suitable:Food Chemical,Latex Paint,Motor Oil,Putty,Vacuum Cleaner,Ventilation Pipe.

Material:Tinplate,Galvanized, Stainless Steel,Cold Roller Sheet

Type:Round/Square/Conical/rectangle

Product:Cans,Pails,Drums or Irregularly Shaped Containers

Size:0.25~25Liter

Products Description

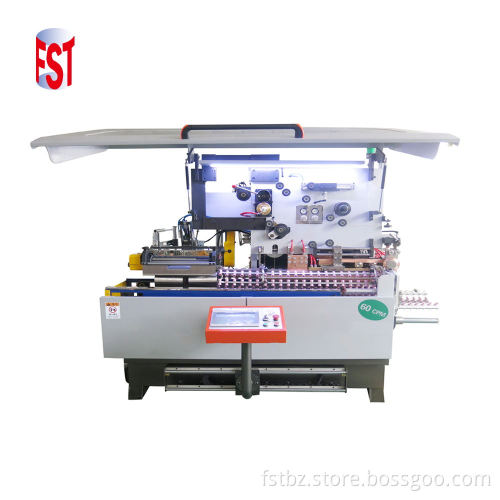

FBZ Automatic Tin Can Seam Welder

FBZ Automatic Tin Can Seam Welder is a special equipment for metal tin can making industry,use to rounding and welding tin can body,change the calibrating tool can welding different size of cans.

Features:

1/Panasonic PLC and Mitsubishi frequency conversion speed governor control system,
2/Welding frequency is adjustable with constant current and attenuation function at front & back end
3/Sensor can precise control the welding current location at front & back end,change copper wire speed.
4/Change the gauge tooling can welding different size of cans.
5/Comprehensive monitoring the equipment running,with failure self-detected alarms and provide solution system.

PLC:Panasonic in Japan

Frequency Converter:Mitsubishi in Japan

Photoelectric Switch:Panasonic in Japan

Rotary Encoder:OMRON in Japan

Water Detection Switch:SMC in Japan
Low-voltage Electrical Appliances:Schneider in France

Welding Wheel Material:Beryllium Copper

Z-bar Material:

Product Paramenters

Model	FBZ-A-60	FBZ-A-30
Input Power	3N 380V/50Hz 100KVA	3N 380V/50Hz 46KVA
Welding Speed	6~25m/min	5~15m/min
Productivity	30~50cans/min	20~30cans/min
Diameter Range	Φ210~Φ290mm	Φ210~Φ290mm
Height	420mm(500mm)	420mm(500mm)
Welding Thickness	0.28~0.42mm	0.28~0.42mm
Overlap	0.6~0.8mm	0.6~1mm
Copper Wire	Φ1.5 T2	Φ1.5 T2
Cooling Water	0.3Mpa 8~10L/min ≤20℃	0.3Mpa 8~10L/min ≤20℃
Net Weight	3000kg	2500kg
Dimension	2300x2700x2000mm	2200x2700x2000mm

Recommend Products

Exhibition

2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou

Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
