Galvanized Sheet Ventilation Pipe Welding Machine (1000mm)

Galvanized Sheet Ventilation Pipe Welding Machine (1000mm)

$18000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	300 Set/Sets per Year
Payment Type:	L/C,T/T
Port:	Shanghai

Product Description

Products Description

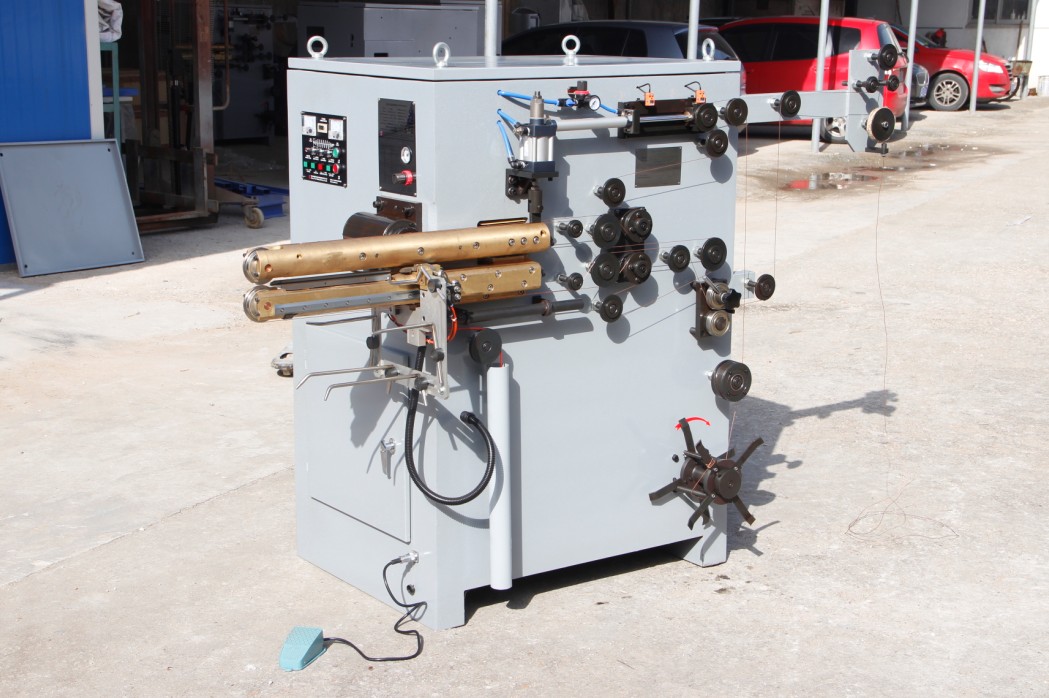

FN2000 Semi automatic Tin Can Seam Welder

FN2000 Semi automatic Tin Can Seam Welder is a special equipment for metal tin can making industry,use to welding tin can body,it's easy to repair and suitable to welding different size of cans.

Features:

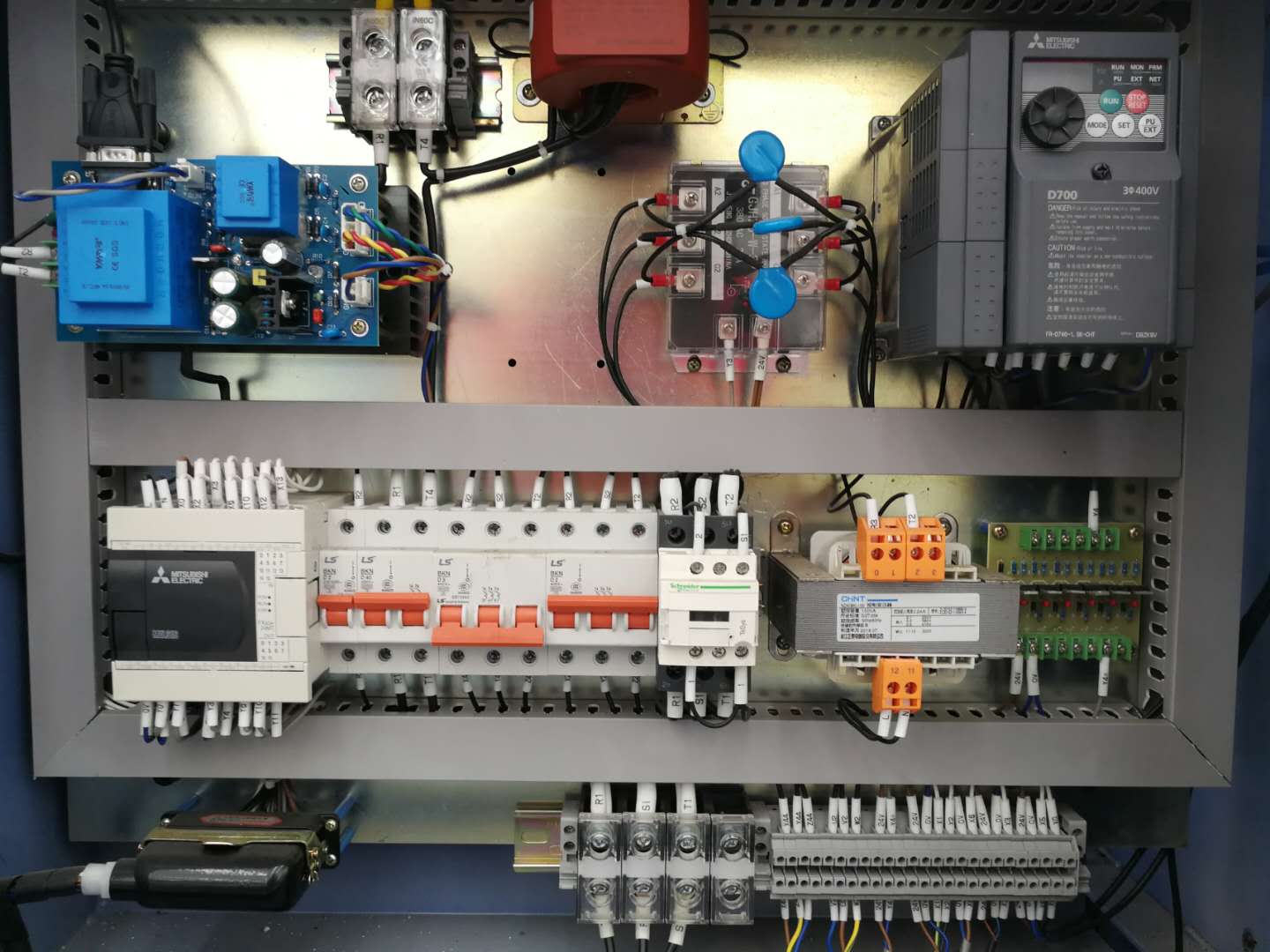

1.Mitsubishi PLC and frequency conversion speed governor control system.

2.Welding current controlled by microcomputer,with the function of gently rise and fall of current in front and end.

3.Welding position with up and down limit to prevent loose.

4.Welding pressure,wire storage pressure are have a table show,easy to adjust.

5.Galvanized material use double copper wire to ensure the welding quality.

PLC:Mitsubishi in Japan

Frequency Converter:Mitsubishi in Japan

Sensor:OMRON in Japan
Contactor:Schneider in France
Silicon Controlled Rectifier:Semikron in Germany

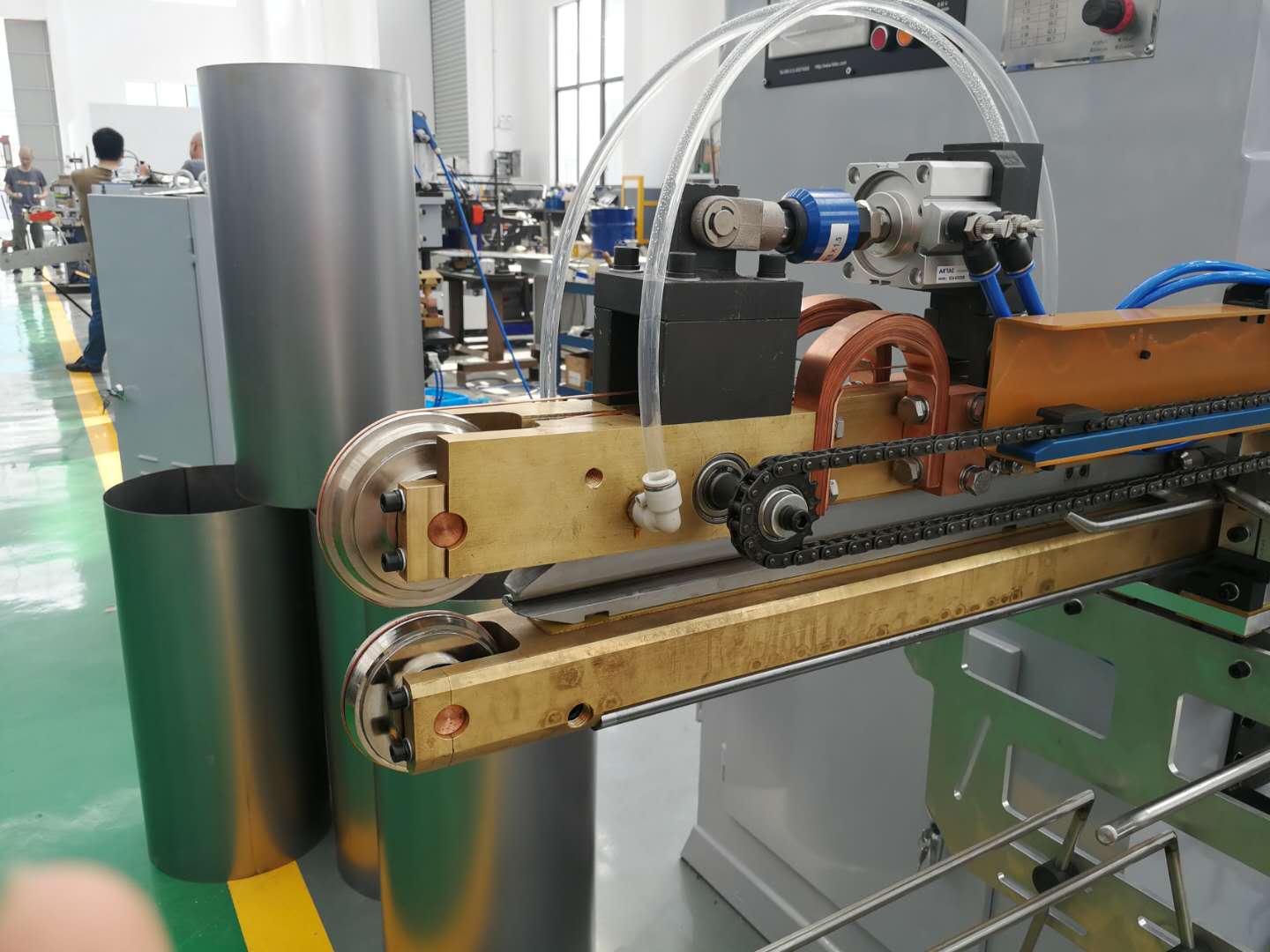

Welding Wheel Material:Beryllium Copper

Z-bar Material:Carbide

Product Paramenters

Model	FN2000-D
Input Power	3N 380V/50Hz 46KVA/63KVA
Welding Speed	2~6m/min
Diameter Range	Φ72(Φ100)~Φ500mm
Height	1000mm
Welding Thickness	0.3~1.0mm
Overlap	6~8mm
Copper Wire	Φ1.8 T2
Welding Material	Tinplate/Galvanized/Cold Roller Sheet
Net Weight	1200kg
Dimension	2500x1100x1600mm
