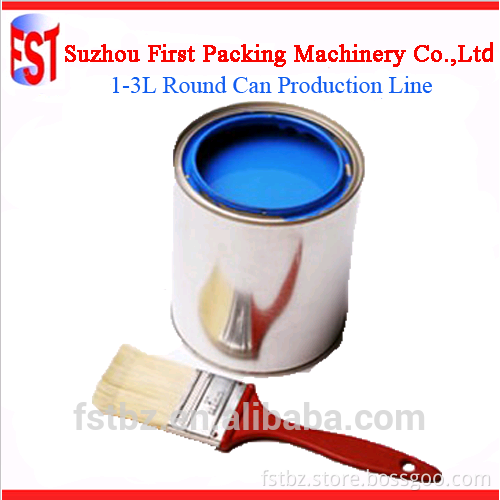

semi automatic conical paint can making equipment

Product Description Product Name:Semi Automatic Conical Paint Can Making Equipment Cutting Machine Round Knife Cutting Machine is used to cut tinplate or other iron sheet for mamanufacturing the cover and body of tin can.

Model	GTIB-15
Max.Thickness	0.5mm
Sheet Width	60-1050mm
Power	1.1kw
Net Weight	1100kg
Dimension	1500×1100×1200mm

Automatic Round Forming Machine Automatic Round Forming Machine have 8 rounder roller and with function of soft iron,rounder without straight edge,match with semi-automatic seam welder to achieve synchronous production,save labor.

Model	CY400-AT
Diameter Range	Φ75-Φ300mm
Thickness	0.2-0.4mm
Max width	440mm
Capacity	20-30cans/min
Net weight	450kg
Dimension	1300x730x1330mm

Backward Seam Welder Japan PANASONIC PLC and Mitsubishi variable frequency governor control system,touch screen operation,change the mould can welding different size of cans.

Model	FB2000-B
Power	3N.380V/50Hz 15KVA
Welding speed	≤ 12m/min
Capacity	20~50cans/min
Diameter Range	Φ 52~ Φ 180mm
Height Range	70~ 420(500)mm
Overlap	0.4~0.9mm
Thickness	0.18~0.35mm
Copper wire	Φ 1.5 T2
Cooling water	0.3MPa 8-10L/min ≤20℃
Net Weight	1300kg
Dimension	1350×1200×2000mm

Flanging Machine FB-A Flanging Machine is designed to flanging the edge of cans.

Model	FB-A
Diameter Range	50-180mm
Power	0.75KW
Thickness	≤0.4mm
Height Range	50-300mm
Capacity	10-15cans/min
Net weight	600kg
Dimension	980x600x1730mm

Pneumatic Sealing Machine Pneumatic Sealing Machine is used for sealing the cover and bottom of tin cans.and pneumatic components is AIRTAC from Taiwan.

Model	GT4A39-R
Diameter Range	50-300mm
Power	2.2kw
Thickness	≤ 0.4mm
Height Range	60-400mm
Spin rate	1420 revolutions/min
Capacity	15-20cans/min
Net weight	800kg
Dimension	980x580x1900mm

Pneumatic Double-head Spot Welder Automatic Pneumatic Double-head Spot Welder is specially designed for welding earlug on can body,left and right earlug welding at the same time,good symmetry. pneumatic components is AIRTAC from Taiwan.

Model	DNZ60B
Power	2N 380V/50Hz 60KVA
Can Diameter	150-180mm or 220-300mm
Compressed Air	900L/min 0.6MPa
Welding material	Tinplate/Galvanized
Capacity	20-30cans/min
Net weight	500kg
Dimension	1350x1000x1550mm

Our Advantage Semi Automatic Conical Paint Can Making Equipment
♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds Related Products Sample Showcase Customers Visit Our machine had been sold more than 30 countriers:Egypt,Russia,South Africa,Vietnam,Dubai,
Pakistan,Kazakhstan,India,Lebanan,Greece,Belarus,Israel,Angola,Yemen,Paraguay, Argentina,
Mexico,Brazil and so on. Company Information Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in
petroleum,chemical,paint,coating,ventilation duct and etc. Packing & Delivery Contact Me
