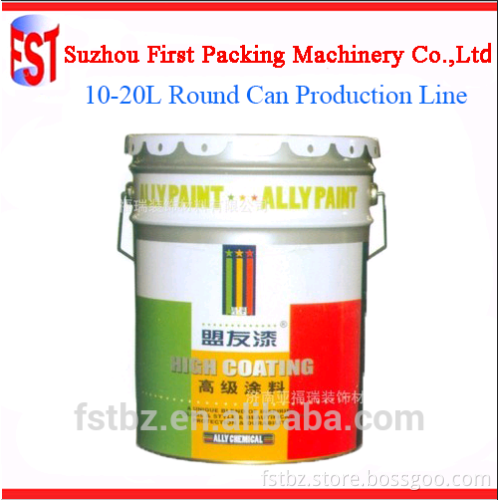

Semi-auto 10-20L Tin Pail Making Equipment

Product Description Product Name:Semi-auto 10-20L Tin Pail Making Equipment Cutting Machine Round Knife Cutting Machine is used to cut tinplate or other iron sheet for mamanufacturing the cover and body of tin can.

Model	GTIB-15
Max.Thickness	0.5mm
Sheet Width	60-1050mm
Power	1.1kw
Net Weight	1100kg
Dimension	1500×1100×1200mm

Automatic Round Forming Machine Automatic Round Forming Machine have 8 rounder roller and with function of soft iron,rounder without straight edge,match with semi-automatic seam welder to achieve synchronous production,save labor.

Model	CY400-AT
Diameter Range	Φ75-Φ300mm
Thickness	0.2-0.4mm
Max width	440mm
Capacity	20-30cans/min
Net weight	450kg
Dimension	1300x730x1330mm

Backward Seam Welder Japan PANASONIC PLC and Mitsubishi variable frequency governor control system,touch screen operation,change the mould can welding different size of cans.

Model	FB2000-B
Power	3N.380V/50Hz 15KVA
Welding speed	≤ 12m/min
Capacity	20~50cans/min
Diameter Range	Φ 52~ Φ 180mm
Height Range	70~ 420(500)mm
Overlap	0.4~0.9mm
Thickness	0.18~0.35mm
Copper wire	Φ 1.5 T2
Cooling water	0.3MPa 8-10L/min ≤20℃
Net Weight	1300kg
Dimension	1350×1200×2000mm

3TA20 Hydraulic Expanding Conical Machine Designed to expand can body to be conical.and the hydraulic system is adopt KOMPASS from Taiwan.

Model	3TA20
Input Power	3N 380V 50Hz
Thickness	≤0.4mm
Diameter Range	φ210-φ300mm
Height Range	270-400mm
Capacity	≤20cans/min
Motor Speed	1640r/min
Motor Power	7.5kw
Oil Pump Pressure	8Mpa
Oil Pump Flow	47.5L/min
Net Weight	1000kg
Dimension	1320x860x1180mm

3TB20 Hydraulic Per-curling & Flanging Machine Designed to do curling on the pail body.and the hydraulic system is adopt KOMPASS from Taiwan.

Model	3TB20
Input Power	3N 380V 50Hz
Thickness	≤0.4mm
Diameter Range	φ210-φ300mm
Height Range	270-400mm
Capacity	≤20cans/min
Motor Speed	1435r/min
Motor Power	5.5kw
Oil Pump Pressure	4Mpa
Oil Pump Flow	36L/min
Net Weight	800kg
Dimension	1390x860x2120mm

Pneumatic Sealing Machine Pneumatic Sealing Machine is used for sealing the cover and bottom of tin cans.and pneumatic components is AIRTAC from Taiwan.

Model	GT4B28A
Power	2.2kw
Diameter Range	100-280mm
Height Range	100-380mm
Thickness	≤0.4mm
Spin rate	1400 revolutions/min
Capacity	15-20cans/min
Net weight	1300kg
Dimension	1800x850x1800mm

3TC20 Hydraulic Beading & Flanging Machine
Designed to do beading on can body.and the hydraulic system is adopt KOMPASS from Taiwan.

Model	3TD20
Input Power	3N 380V 50Hz
Thickness	≤0.4mm
Diameter Range	φ210-φ300mm
Height Range	270-400mm
Capacity	≤20cans/min
Motor Speed	1640r/min
Motor Power	7.5kw
Oil Pump Pressure	4.5Mpa
Oil Pump Flow	67L/min
Net Weight	1000kg
Dimension	1520x860x2120mm

Double-Head Spot Welder Specially designed for welding earlug on can body.

Model	DNZ60B
Power	2N 380V/50Hz 60KVA
Diameter	150-180 or 220-300mm
Compressed Air	900L/min 0.6MPa
Welding material	Tinplate/Galvanized
Capacity	20-30cans/min
Net weight	500kg
Dimension	1350x1000x1550mm

Our Advantage Semi-auto 10-20L Tin Pail Making Equipment
♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds Related Products


Sample Showcase Customers Visit Our machine had been sold more than 30 countriers:Egypt,Russia,South Africa,Vietnam,Dubai,
Pakistan,Kazakhstan,India,Lebanan,Greece,Belarus,Israel,Angola,Yemen,Paraguay, Argentina,
Mexico,Brazil and so on. Company Information Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in
petroleum,chemical,paint,coating,ventilation duct and etc. Contact Me
