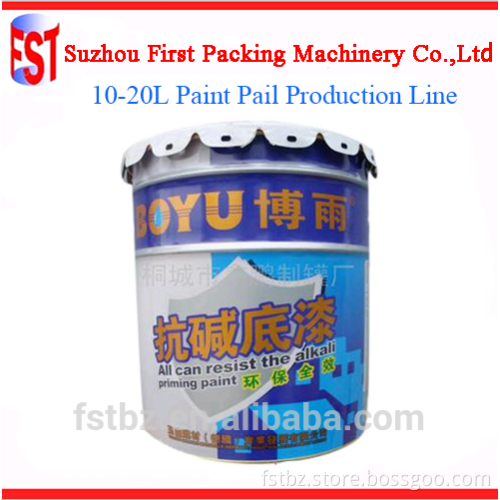

Automatic Cone Conical Tin Metal Pail Production Line

Product Description Product Name:Automatic Cone Conical Tin Metal Pail Production Line Cutting Machine Function:Cutting Sheet Into Small Piece

Model	GTIB-15
Max.Thickness	0.5mm
Sheet Width	60-1050mm
Power	1.1kw
Net Weight	1100kg
Dimension	1500×1100×1200mm

Automatic Round Forming Machine Function:Make Sheet Into Circle

Model	CY400-AT
Diameter Range	Φ75-Φ300mm
Thickness	0.2-0.4mm
Max width	440mm
Capacity	20-30cans/min
Net weight	450kg
Dimension	1300x730x1330mm

Backward Seam Welder Function:Welding The Can Body After Forming

Model	FB2000-A
Power	3N.380V/50Hz 15KVA
Welding speed	≤ 12m/min
Capacity	20~50cans/min
Diameter Range	Φ 65~ Φ 290mm
Height Range	70~ 420(500)mm
Overlap	0.4~0.9mm
Thickness	0.18~0.35mm
Copper wire	Φ 1.5 T2
Cooling water	0.3MPa 8-10L/min ≤20℃
Net Weight	1300kg
Dimension	1350×1200×2000mm

Hydraulic Conical Shape Machine
Function:Expanding Conical

Model	3TA20
Diameter	210-300mm
Height	270-400mm
Productivity	15cans/min
Power	7.5kw
Net weight	900kg
Dimension	1300x780x1150mm

Hydraulic Per-curling & Flanging Machine Function:Curling The End Of Can Body

Model	3TB20
Diameter	210-300mm
Height	270-400mm
Productivity	15cans/min
Power	4kw
Net weight	900kg
Dimension	1300x700x1750mm

Automatic Sealing Machine Function:Sealing The Bottom

Model	GT4B28A
Diameter Range	100-280mm
Height Range	100-400mm
Thickness	≤0.4mm
Power	2.2kw
Spin rate	1400 revolutions/min
Capacity	15-20cans/min
Net weight	1300kg
Dimension	1800x850x1800mm

Hydraulic Flanging & Beading Machine
Function:Curling and Beading

Model	3TC20
Diameter	210-300mm
Height	270-400mm
Productivity	15cans/min
Power	5.5kw
Net weight	950kg
Dimension	1470x940x1980mm

Automatic Earlug Spot Welder
Function:Earlug Welder For Lift Handle

Model	DNZ60B
Power	2N 380V/50Hz 60KVA
Productivity	20-30cans/min
Compressed Air	900L/min 0.6MPa
Welding material	Tinplate/Galvanized/Cold Roller Sheet
Diameter	150-180 or 220-300mm
Net weight	500kg
Dimension	1350x1000x1550mm

Our Advantage ♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds Related Products


Sample Showcase Customers Visit Our machine had been sold more than 30 countriers:Egypt,Russia,South Africa,Vietnam,Dubai,
Pakistan,Kazakhstan,India,Lebanan,Greece,Belarus,Israel,Angola,Yemen,Paraguay, Argentina,
Mexico,Brazil and so on.
Company Information Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in
petroleum,chemical,paint,coating,ventilation duct and etc. Exhibition Contact Me
