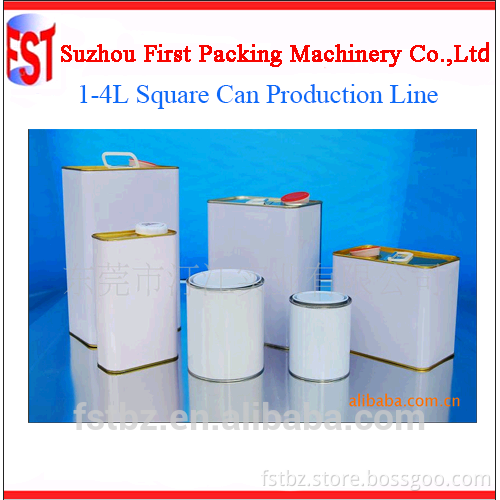

1-4L semi-automatic square can making machine

Product Description Product Name:1-4L semi-automatic square can making machine Cutting Machine Function:Cutting Sheet Into Small Piece

Model	GTIB-15
Max.Thickness	0.5mm
Sheet Width	60-1050mm
Power	1.1kw
Net Weight	1100kg
Dimension	1500×1100×1200mm

Automatic Round Forming Machine Function:Make Sheet Into Circle

Model	CY400-AT
Diameter Range	Φ75-Φ300mm
Thickness	0.2-0.4mm
Max width	440mm
Capacity	20-30cans/min
Net weight	450kg
Dimension	1300x730x1330mm

Backward Seam Welder Function:Welding The Can Body After Forming

Model	FB2000-B
Power	3N.380V/50Hz 15KVA
Welding speed	≤ 12m/min
Capacity	20~50cans/min
Diameter Range	Φ 52~Φ180mm
Height Range	70~ 420(500)mm
Overlap	0.4~0.9mm
Thickness	0.18~0.35mm
Copper wire	Φ 1.5 T2
Cooling water	0.3MPa 8-10L/min ≤20℃
Net Weight	1300kg
Dimension	1350×1200×2000mm

Square Can Forming Machine Function:Square Forming

Model	3F4Y
Power	5.5kw
Thickness	0.15-0.3mm
Productivity	20-30cans/min
Net weight	550kg
Dimension	720x1400x1500mm

Square Can Flanging Machine Function:Curling The End Of Can Body

Model	3F4Z
Power	3.7kw
Thickness	0.15-0.3mm
Productivity	20-30cans/min
Net weight	450kg
Dimension	1300x700x1100mm

Automatic Sealing Machine Function:Sealing The Bottom

Model	GT4A16BS
Power	1.5kw
Diagonal Line	160-190mm
Thickness	≤0.4mm
Height Range	60--300mm
Spin rate	1400 revolutions/min
Capacity	20-30cans/min
Net weight	1100kg
Dimension	2700x950x1850mm

Single-Head Spot Welder Function:Lift Handle Welding Machine

Model	DN40B
Power	3N 380V/50Hz 40KVA
Electrode Stroke	75mm
Compressed Air	500L/min 0.6MPa
Welding material	Tinplate/Galvanized
Capacity	10-20cans/min
Net weight	300kg
Dimension	550x850x1250mm

Our Advantage ♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds Related Products


Sample Showcase Customers Visit Our machine had been sold more than 30 countriers:Egypt,Russia,South Africa,Vietnam,Dubai, Pakistan,Kazakhstan,India,Lebanan,Greece,Belarus,Israel,Angola,Yemen,Paraguay, Argentina, Mexico,Brazil and so on. Company Information Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in
petroleum,chemical,paint,coating,ventilation duct and etc. Exhibition 2015 Cannex In Guangzhou Contact Me
