99mm Paint Oil Round Metal Semi Automatic Tin Can Packing Machine

99mm Paint Oil Round Metal Semi Automatic Tin Can Packing Machine  Production details:

Name and picture	Technical Specificatins
Slitting Machine GTIB-15	Max.sheet thickness:        0.5mm  Sheet Width :                 60-1050mm Attached engine Power:    1.1kw Net Weight:                      1100kg Dimension:                1500×1100×1200mm
Round Shape Roller Machine  CY400	Thickness :                 ≤ 0.4mm Diameter Range:   80-  300mm  Max.Width:                ≤400mm  Capacity:              50-80 cans / min  Power of motor:       0.75Kw  Net Weight:              100Kg Dimension :           870 x 670 x 920mm
Welding Machine FB2000-A	Power:                   3N.380V/50Hz 15KVA  Welding speed:               ≤12m/min  Capacity:                      20~50cans/min  Welding Frequency:     100~250Hz  Diameter Range:           φ65~φ300mm  Height Range:               70~400mm  Overlap:                        0.6~1.2mm  Thickness:                      0.2~0.38mm  Copper Wire Diameter:  φ1.5~φ1.7mm T2  Cooling Water:               ≥0.4MPa 10L/min  Net Weight:                         1300kg Dimension:                     1350×1300×1700mm
Flanging Machine FB-A	Thickness :                       0.25—0.35 Nominal:                               10T Slide block stroke:               64mm die height adjustment:        15mm Die set height adjustment:  60mm Net Weight:                          600KG Dimension :                  980×600×1730mm
Seaming Machine GT4A68	Round Can(Diameter):    Φ50-Φ180mm Capacity:                         ≤ 30cans/min  Thickness:                            ≤ 0.4mm Height Range:                   60--300mm Net Weight:                          450kg  Power of motor:                    1.5kw  Dimension :                      720×520×1760mm
Double Head Ear Welding Machine DN60B	Power:                3N380HZ 60KVA Diameter Range:      φ150—φ300 Thickness (mm):          0.2—0.5 Capacity:                   25cans/min Compressde Air:      300L/min 0.6Mpa Electrode joumey(mm)    50 Net Weight (kg):              350 Dimension(mm):      105*80*100
Moulds Bottom  1,Lid  2,ring  3
Punching machine

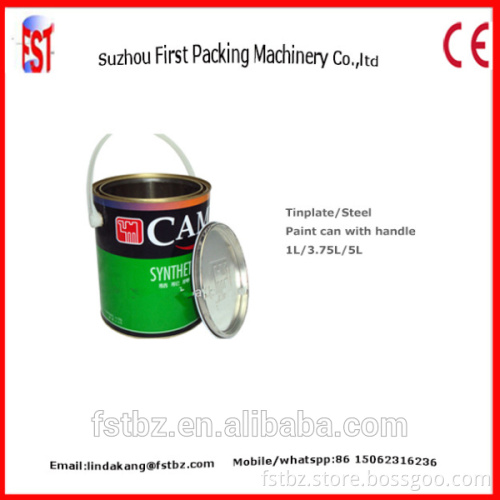

    Sample cans we can make: chemical/oil/paint/adhensive/gasoilne/garbage cans/tank/bustek/barrels      Customers from all over the world: the main market is in Asia,south and north America, Africa.    Customers training in our factory:
  Company Information
Suzhou First Packing Machinery Co,.Ltd     Suzhou First Packing Machinery Co.Ltd was founded in 1997.it's the profession design can maker machine manufacturer ,the productions are wildly apply to metal container packing field,such as food, beverage,petroleum,chemical industry,paint,coating,and so on. we are looking forward to your visit for further negotiation and cooperation.Welcome friends from all  over the world to visit our company,we will try our best to serve you . We speacilized in various can making such as:  1-5l round tin canister making  line. 1-4l square can making machine. 10-20l cone tank production equipment. 18-20l round can making equipment. 18-20l rectangular tank production line. Automatic food can production machines.         Advantages of our machine:
  Our Services A,one year warranty for the whole system. B,Free equipment installation and debugging. C, Atfer one year,we can help you to maintain the machine and accessories are provide only the coat price. D, We can help you to design the production line ,workshop and provide turn key project. 2 ,Electrical component:   MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan. SCHNEIDER electrical appliance components from France. LG air switch,contactor and circuit breaker from South Korea. SEMIKRON control thyristors from German. BOURNS potentiometer from America. 3, Payment: T/T.30% deposit in advanced,balance should be payed before shipment.    Packaging & Shipping Packaging Details: To be packed in plywood case for square can machine. Delivery Detail: 30 days after recived the deposit for square can machine.        What can I do for you?
