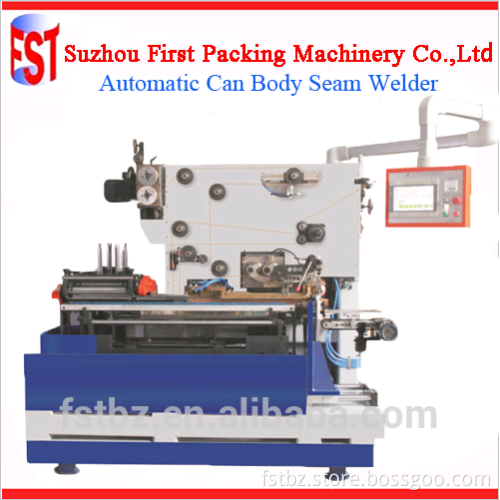

Metal Can Body Automatic Welding Equipment

Product Description

Model	FBZ-C	FBZ-C-150	FBZ-C-200
Power	3N.380V/50Hz 35KVA		3N.380V/50Hz 40KVA
Welding speed	6-24m/min	24m/min	30m/min
Capacity	60-100cans/min	≤150cans/min	≤200cans/min
Diameter Range	Φ52~Φ99mm or Φ65~Φ165mm
Height Range	≤315mm
Welding Material	Tinplate T2.5-DR8
Welding Frequency	100-300Hz
Overlap	0.4~0.6mm
Thickness	0.16~0.3mm
Copper wire	Φ1.38 Φ1.5 T2
Compressed Air	0.3MPa 15-20L/min ≤18℃
Net Weight	1850kg	2500kg
Dimension	2000x1800x1600mm	2300×1700×2300mm

Product Features • Adopt the Japan's panasonic PLC as control host, panasonic servo motor as power drive device, touch screen human-machine interface operation.
• The new-type variable frequency power supply with communication Interface,also have constant current and attenuation function of front and back end of the current.
• Adopt the photoelectric sensor to detection the front and back end of welding line,needn't to adjust to change welding speed,Precise control current start and stop.
• Adopt sensor tension control, make the tension on the copper wire is coordinate,reduce the change of copper wire tension influence the welding quality.
• Rounder double-sheet detect adopt sensor automatically monitor,high precision,quick response,needn't repeat adjust,it's convenient for workers to use.
• Welding transformer adpot epoxy pouring water-cooled transformer,can long-time running.
• The conveying system adopt ceramic rollers,Increased insulation and reduce to wear and tear
• High degree of automation, only set up the basic parameters and the running speed,the other data will generated automatically.the machine can save the parameter record for the next invocation.
• Comprehensive monitoring of equipment operatio n.and with failure self-detected and arlarms system,also provide solution proposal. Our Advantage ♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds
