Automatic Can Maker Resistance Welding Equipment

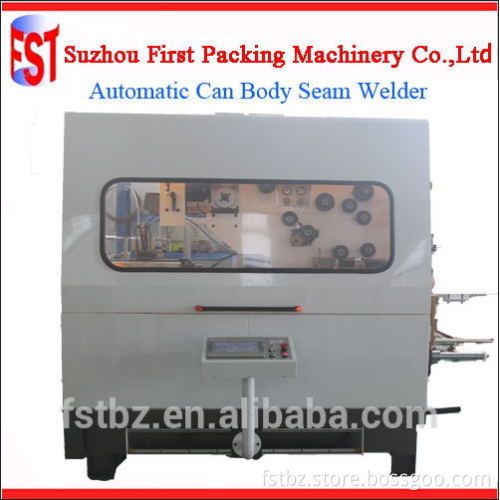

Product Description Automatic Can Body Seam Welder Function:Sheet Forming & Welding

Model	FBZ-A	FBZ-B	FBZ-C
Power	3N.380V/50Hz 46KVA		3N.380V/50Hz 35KVA
Welding speed	6-18m/min		6-24m/min
Capacity	40cans/min	60cans/min	60-100cans/min
Diameter Range	Φ250-Φ290mm	Φ120-Φ180mm	Φ52~Φ99 or Φ65~Φ165mm
Height Range	200~ 420mm	≤250mm	≤315mm
Welding Material	Tinplate		Tinplate T2.5-DR8
Welding Frequency	100-300Hz
Overlap	0.8-1.0mm	0.6-0.9mm	0.4~0.6mm
Thickness	0.28~0.4mm	0.18~0.4mm	0.16~0.3mm
Copper wire	Φ1.5 T2		Φ1.38 Φ1.5 T2
Compressed Air	900L/min 0.5MPa
Cooling water	0.3MPa 10-15L/min ≤18℃		0.3MPa 15-20L/min ≤18℃
Net Weight	2000kg		1850kg
Dimension	2100×1900×1900mm		2000x1800x1600mm

Backward Seam Welder Function:Welding The Can Body After Forming

Model	FB2000-A	FB2000-B
Power	3N.380V/50Hz 15KVA
Welding speed	≤ 12m/min
Capacity	20~50cans/min
Diameter Range	Φ65~Φ300mm	Φ52~Φ180mm
Height Range	70~ 420(500)mm
Overlap	0.6~1.2mm	0.4~0.9mm
Thickness	0.18~0.4mm	0.18~0.35mm
Copper wire	Φ1.5 T2
Cooling water	0.3MPa 8-10L/min ≤20℃
Net Weight	1300kg
Dimension	1350×1200×2000mm

Forward Seam Welder Function:Welding The Can Body After Forming

Model	FN2000-A	FN2000-B	FN2000-C
Power	3N.380V/50Hz 10KVA
Welding speed	5-10m/min
Capacity	10~20cans/min
Diameter Range	Φ105~Φ300mm	Φ52~Φ176mm	Φ105~Φ300mm
Height Range	≤400(500)mm	≤250mm	≤400(500)mm
Overlap	3~4mm	2~3mm	3~4mm
Thickness	0.18~0.4mm		0.18~0.5mm
Welding Material	Tinplate/steel-base sheet		Galvanized/Tinplate
Copper wire	Φ1.5 T2		Φ1.5-Φ1.7 T2
Cooling water	0.3MPa 8-10L/min
Net Weight	1000kg
Dimension	2200x1100x1600mm

Automatic Double-Head Spot Welder Function:Earlug Spot Welder

Model	DN60B	DNZ60B	DNF60B
Power	2N380V/50HZ 60KVA
Productivity	15-20cans/min	20-30cans/min	30-60cans/min
Compressed Air	900L/min 0.6MPa
Diameter	150-300mm	150-180 or 220-300mm
Net weight	350kg	500kg	1500kg
Dimension	1050x800x1000mm	1350x1000x1550mm	2000x1500x1800mm

Single-Head Spot Welder Function:Lift Handle Welding Machine

Model	DN40B
Power	3N 380V/50Hz 40KVA
Electrode Stroke	75mm
Compressed Air	500L/min 0.6MPa
Welding material	Tinplate/Galvanized
Capacity	10-20cans/min
Net weight	300kg
Dimension	550x850x1250mm

Our Advantage ♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds. Related Products Sample Showcase


Customers Visit Our machine had been sold more than 30 countriers:Egypt,Russia,South Africa,Vietnam,Dubai,
Pakistan,Kazakhstan,India,Lebanan,Greece,Belarus,Israel,Angola,Yemen,Paraguay, Argentina,
Mexico,Brazil and so on. Company Information Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in
petroleum,chemical,paint,coating,ventilation duct and etc. Packing & Delivery Contact Me
