Tinplate Can Production Line for Paint Can Body Forming

Tinplate Can Production Line for Paint Can Body Forming

$5600.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,T/T
Port:	Shanghai

Product Description

Product Name:Tinplate Can Production Line Used For Paint Can Body Former

Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems

3 Piece Metal Packaging Industry

Suitable:Food Chemical,Latex Paint,Motor Oil,Putty,Vacuum Cleaner,Ventilation Pipe.

Material:Tinplate,Galvanized, Stainless Steel,Cold Roller Sheet

Type:Round/Square/Conical/rectangle

Product:Cans,Pails,Drums or Irregularly Shaped Containers

Size:0.25~25Liter

Products Description

CY400-AT Automatic Canbody Forming Machine

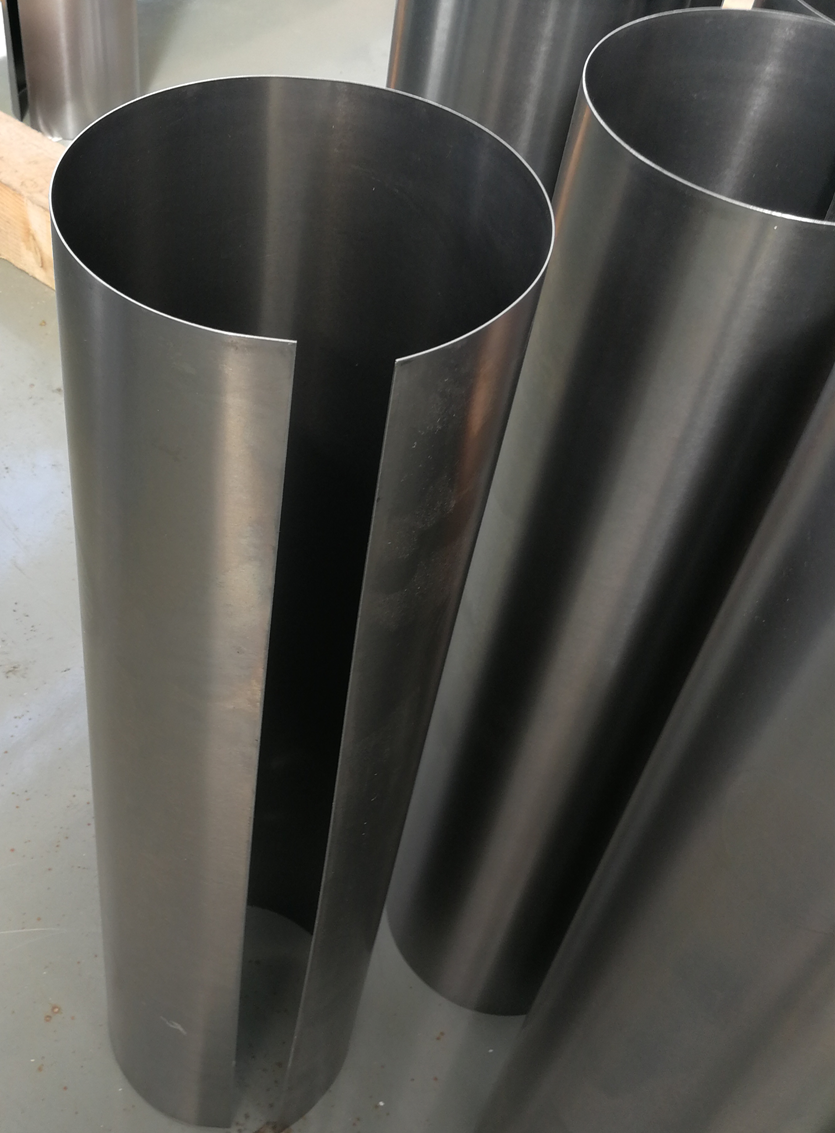

CY400-AT Automatic Canbody Forming Machine is a special equipment for metal tin can making industry,use to make body blanks into cylindrical shape.

♦ The machine integrate feeding and forming with function of soft iron.

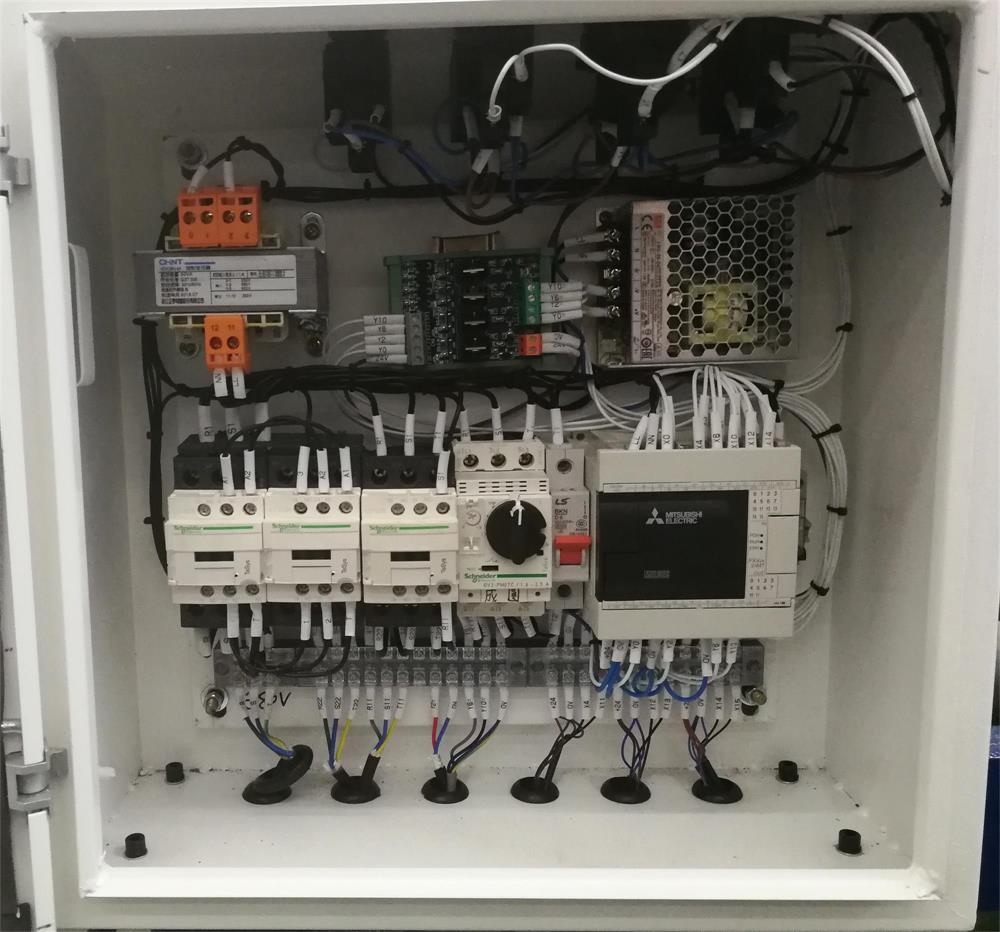

♦ Mitsubishi PLC program control and automatic lifting platform.
♦ Rounder efficiency detected by photoelectric switch,connect with welding machine.
♦ Match with semi-automatic seam welder can achieve synchronous production,save labor.

Product Paramenters

Model	CY400-AT	CY600-AT
Productivity	20~30cans/min	15cans/min
Diameter Range	Φ65~Φ300mm	Φ100~Φ500mm
Height	≤430mm	≤600mm
Welding Thickness	0.2~0.42mm	0.2~0.8mm
Net Weight	450kg	500kg
Dimension	2000x900x1500mm	2300x1080x1550mm

Recommend Products

Exhibition

2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou

Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
