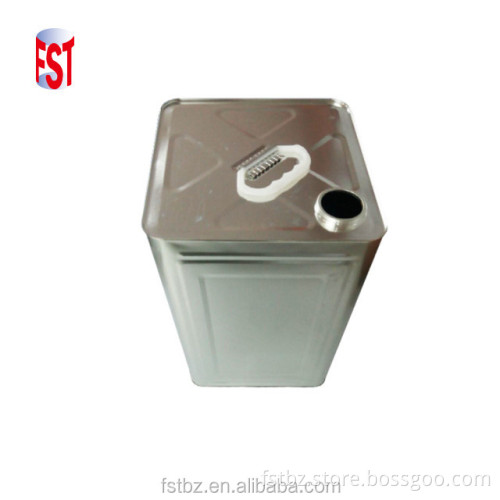

Semi-Automatic 18L Square Tin Can Making Line

Semi-Automatic 18L Square Tin Can Making Line

$120000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,D/P,T/T
Port:	Shanghai

Product Description

Product Paramenters

Name	Automatic Duplex Slitting Machine
Model	GT-A10
Max Thickness	0.4mm
Max Width	1200x1200mm
Min Width	600x600mm
Power	15kw
First Strip	5 pieces
Second Strip	15 pieces
Net Weight	2000kg
Dimension	2500x2000x1200mm

Name	Automatic Can Welding Machine
Model	FBZ-A-30
Input Power	3N380V/50HZ 46KVA
Welding Speed	5~15m/min
Productivity	60cans/min
Diameter Range	Φ220~Φ290mm
Height Range	420mm
Welding Thickness	0.2~0.38mm
Overlap	0.6~0.8mm
Net Weight	2500kg
Dimension	2200x2700x2000mm

Name	Water Chiller
Model	AC-02
Cooling Capacity	5332kcal/h
Power	220V 50HZ/2025kw
Net Weight	100kg
Dimension	650x500x830

Name	Automatic Square Expander + Flanging
Model	FST-18
Diagonal Range	Φ210~Φ290mm
Height Range	420mm
Capacity	20cans/min
Thickness	0.28~0.3mm
Air Pressure	0.3~0.5Mpa
Power	15kw
Net Weight	3000kg
Dimension	3500x1200x3200mm

Name	Automatic Sealing Machine
Model	GT6B-18
Input Power	3N380V/50HZ
Productivity	18~20cans/min
Diagonal Range	300~320mm
Air Compressor	0.3MPa~0.5MPa
Net Weight	1200kg
Dimension	1200x860x2200mm

Our Advantages

♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.

Exhibition

2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou

Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
