Irregular Square Metal Can Production Line for Oil Packaging

Irregular Square Metal Can Production Line for Oil Packaging

$4200.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specification

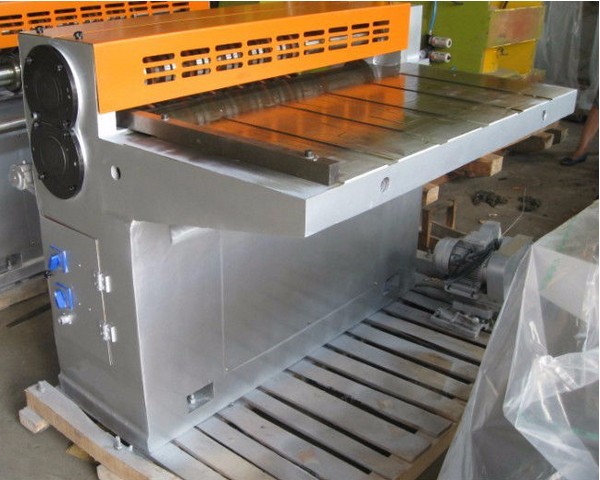

Tinplate sheet cutting machine
Model	GT1B5
Min sheet width:	44mm
Max sheet width:	1050mm
Max sheet thickness	0.4mm
Motor power:	1.1kw
Net weight:	1400kgs
Dimension:	1500x1600x1100mm

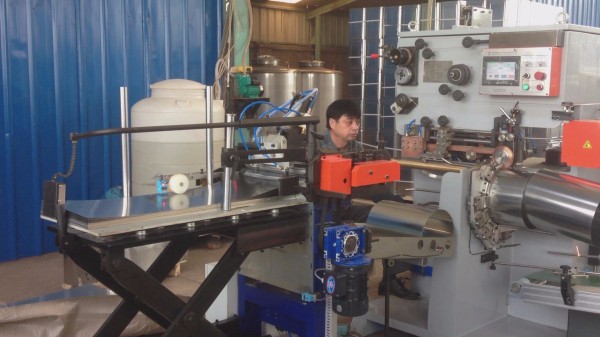

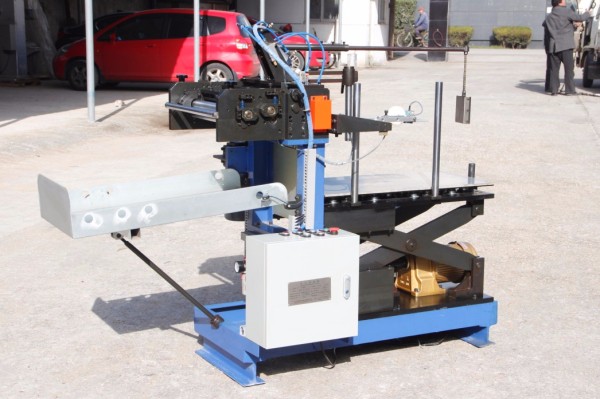

Automatic roll forming machine
Model	CY400-AT
Capacity:	20-40cans/min
Thickness	0.2-0.4mm
Diameter:	75-300mm
Max.width	440mm
Net weight:	450
Dimension:	2000x900x1500mm

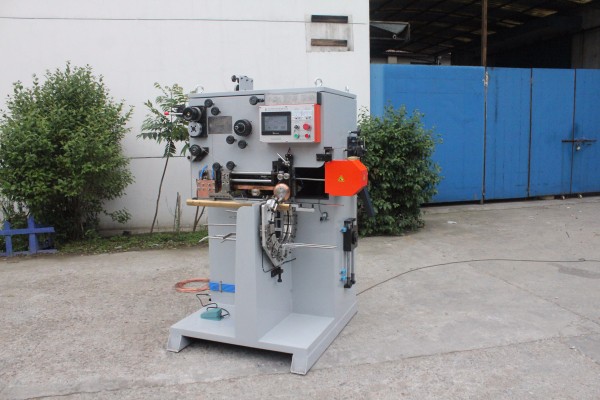

Semi-automatic backwars seam welding machine
Model:	FB2000-A
Power:	3N380V/50HZ----18KVA
Welding speed:	≤12m/min
Capacity:	20-50cans/min
Diameter:	65-290mm
Height:	70-420（500）mm
Overlap:	0.6-1.2mm
Thickness:	0.18-0.35mm
Copper wire:	Ø1.5 mm T2
Net Weight:	1300kgs
Dimension:	1350x1300x1700mm

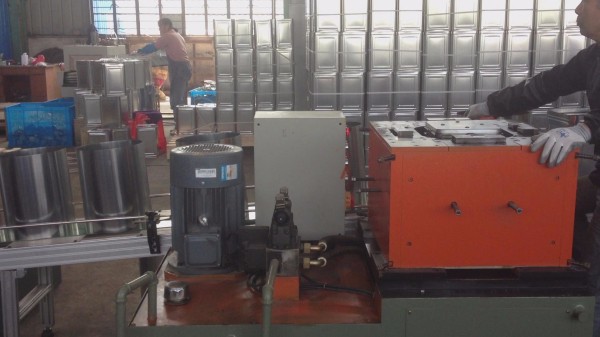

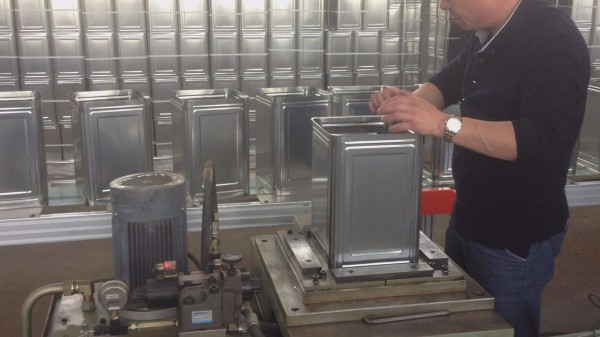

Hydraulic square can expanding machine
Capacity:	15-20cans/min
Thickness:	0.25-0.35mm
Rang of Can	18-20l
Power:	7.5kw
Net weight:	900kg
Dimension:	1400x720x1400mm

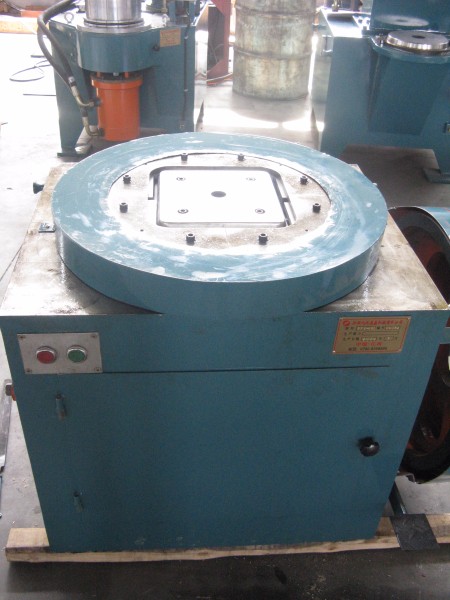

Hydraulic flanging machine for square can
Range	18-20L
Thickness	0.25-0.35
Power of motor	0.75kw
Capacity	15—20cans/min
Net Weight	350kg
Dimension	680x1020x800mm

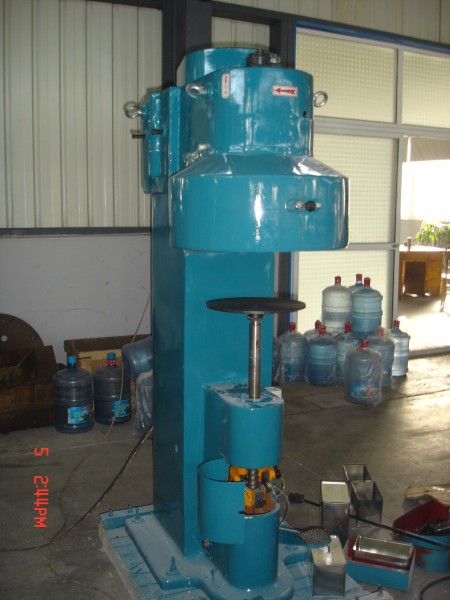

Sealing machine for round can
Model:	GT4A19F
Capacity:	15-20cans/min
Diameter:	50-330
Max.Height:	400mm
Power:	1.5kw
Net weight:	750kg
Dimension:	1070x720x2050mm

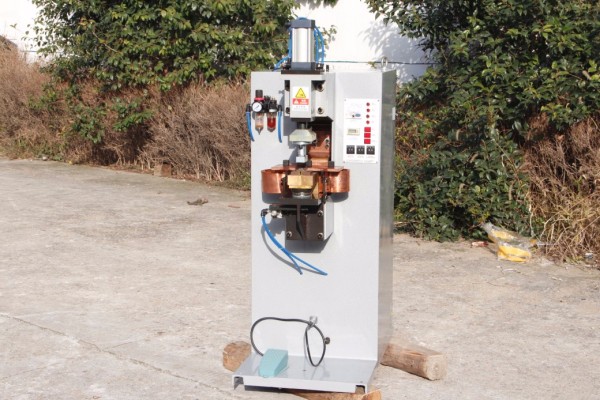

Semi automatic can earlug welding machine
Model	DN40B
Power	3N380V/50HZ 60KVA
Capacity(cpm)	10-20cpm
Electrode stroke	75
Compressed air	500L/min 0.6Mpa
Net weight	300kg
Dimension	550x850x1350mm

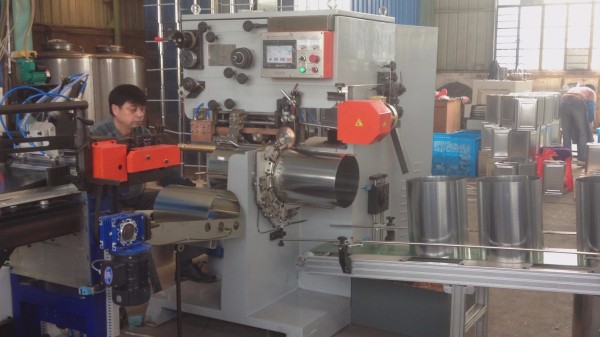

Square can making machine line

Automatic roll formers Automatic seam welders Backward seam welders Auto lug spot welders

Our advantage

1,MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
2,OMRON Sensor and photoelectric switch form Japan.
3,SMC Waterway detected flow switch from Japan.
4,SKF bearings from Sweden.
5,SCHNEIDER electrical appliance components from France.
6, LG air switch,contactor and circuit breaker from South Korea.
7,SEMIKRON control thyristors from German.
8,BOURNS potentiometer from America.
9,AIRTAC pneumatic components and YONGKUN motor from Taiwan.
10,KOMPASS hydraulic system from Taiwan.
11,SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds

Applications

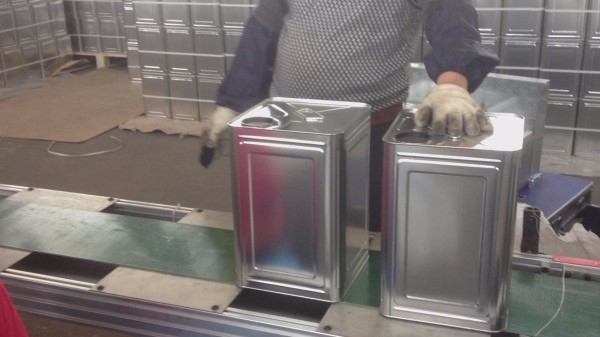

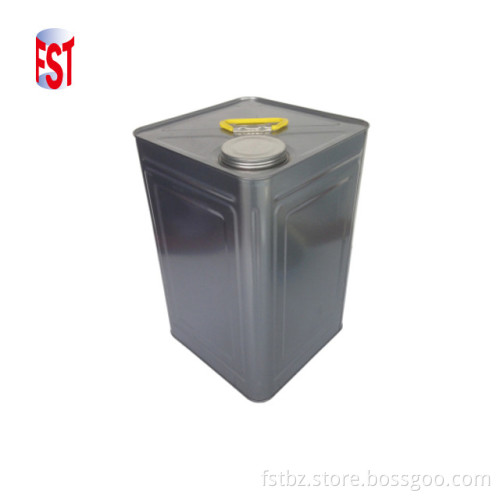

1-5L round can 10-25L conical pail 1-4l rectangular can 18L square can
