Suzhou First Full Automatic 20 Liter Paint Pail Drum Can Making Machine

Suzhou First Full Automatic 20 Liter Paint Pail Drum Can Making Machine

$150000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,Western Union,D/P,D/A,T/T
Port:	shanghai

Product Description

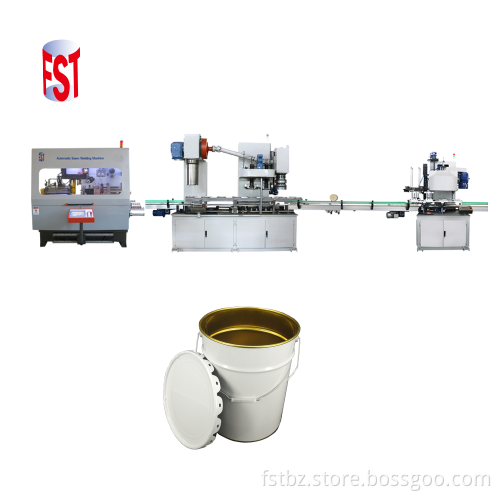

Product Name:SUZHOU FIRST Complete Full Automatic 20Liter Paint Pail Barrel Drum Tin Can Making Machine

Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems

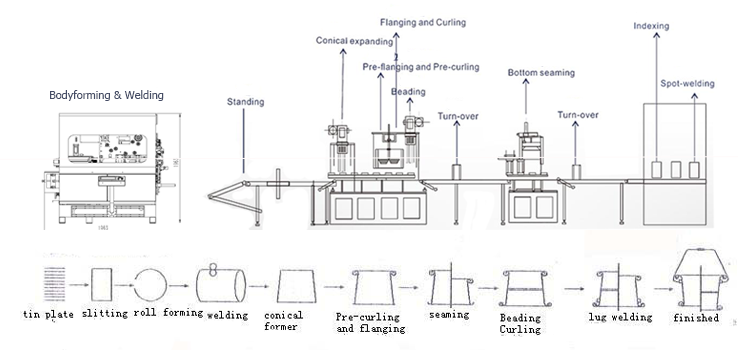

The follow is 18~20liter full automatic paint pail can production line with productivity of 30cans/min

Product Paramenters

Automatic Duplex Slitting Machine

Automatic Slitting Machine is use to cut the printed tinplate base material (large square metal sheets) into body blanks of required size,it's the first stage in the production line.

Model	GT-A10
Max Thickness	0.4mm
Max Width	1200x1200mm
Min Width	600x600mm
Power	15kw
First Strip	5 pieces
Second Strip	15 pieces
Net Weight	2000kg
Dimension	2500x2000x1200mm

Automatic Canbody Welder

Automatic Canbody Welder is use to make body blanks into cylindrical shape and welding,it's the second stage in the production line.

Model	FBZ-A-30
Input Power	3N380V/50HZ 46KVA
Welding Speed	5~15m/min
Productivity	30cans/min
Diameter Range	Φ210~Φ290mm
Height Range	420mm
Welding Thickness	0.28~0.42mm
Overlap	0.6~0.8mm
Net Weight	2500kg
Dimension	2200x2700x2000mm

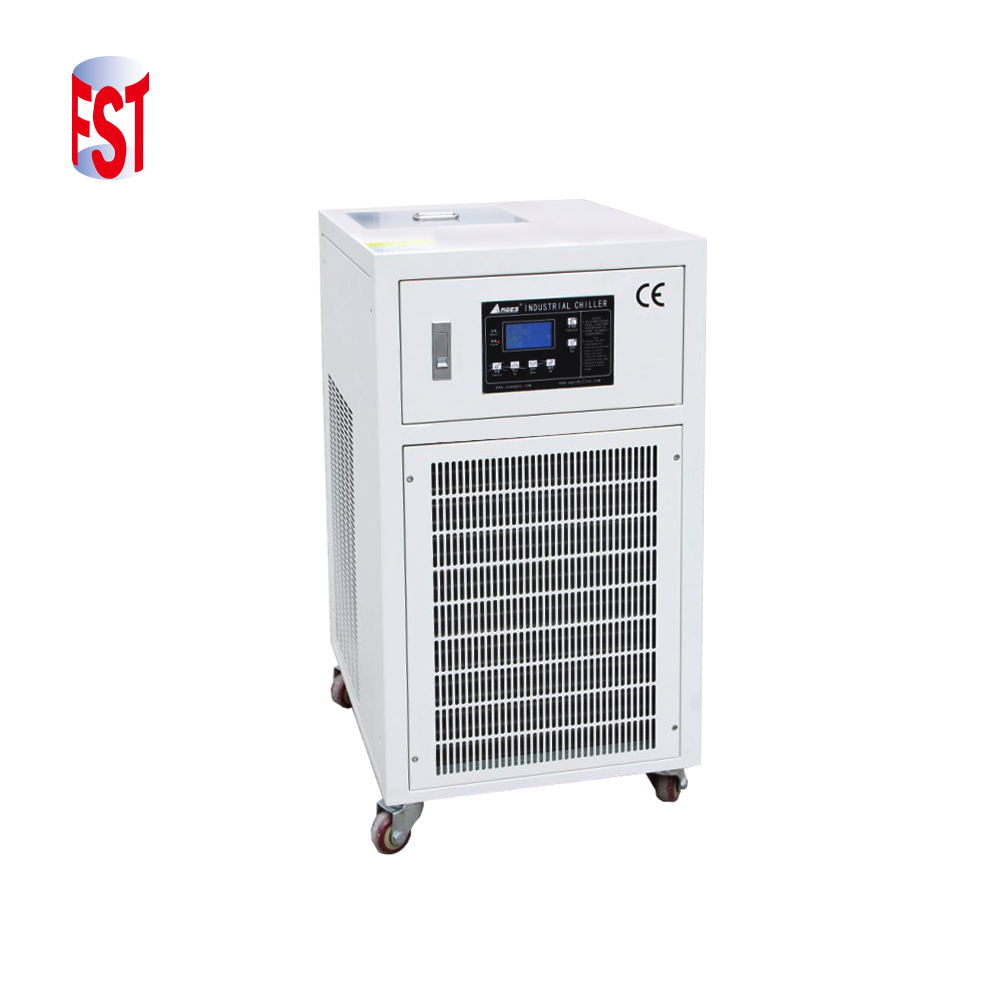

Chiller

Chiller is use to connect with automatic canbody welder,extended welding wheel service life

Name	Water Chiller
Model	AC-02
Cooling Capacity	5332kcal/h
Power	220V 50HZ/2025kw
Net Weight	100kg
Dimension	650x500x830mm

Automatic Bodyformers

Automatic Bodyformers is use to given the canbody into final shape and prepared for the endseaming process.it's combine all the necessary functionsin a single machine: shape,necking,flanging, beading and seaming the bottom or top end.

Model	FST-20
Diameter Range	Φ210~Φ290mm
Height Range	420mm
Capacity	20~30cans/min
Thickness	0.28~0.42mm
Air Pressure	0.3~0.5Mpa
Power	30kw
Net Weight	5200kg
Dimension	6500x1200x2300mm

Automatic Earlug Welding

Automatic Ear Welding is use to welding the ear on the canbody.

Model	DNZD60B
Input Power	3N380V/50HZ 60KVA
Productivity	20~25cans/min
Diameter Range	Φ220~Φ300mm
Air Compressor	900L/min 0.6MPa
Net Weight	600kg
Dimension	3300x1500x1600mm

Finish Products

Our Advantages

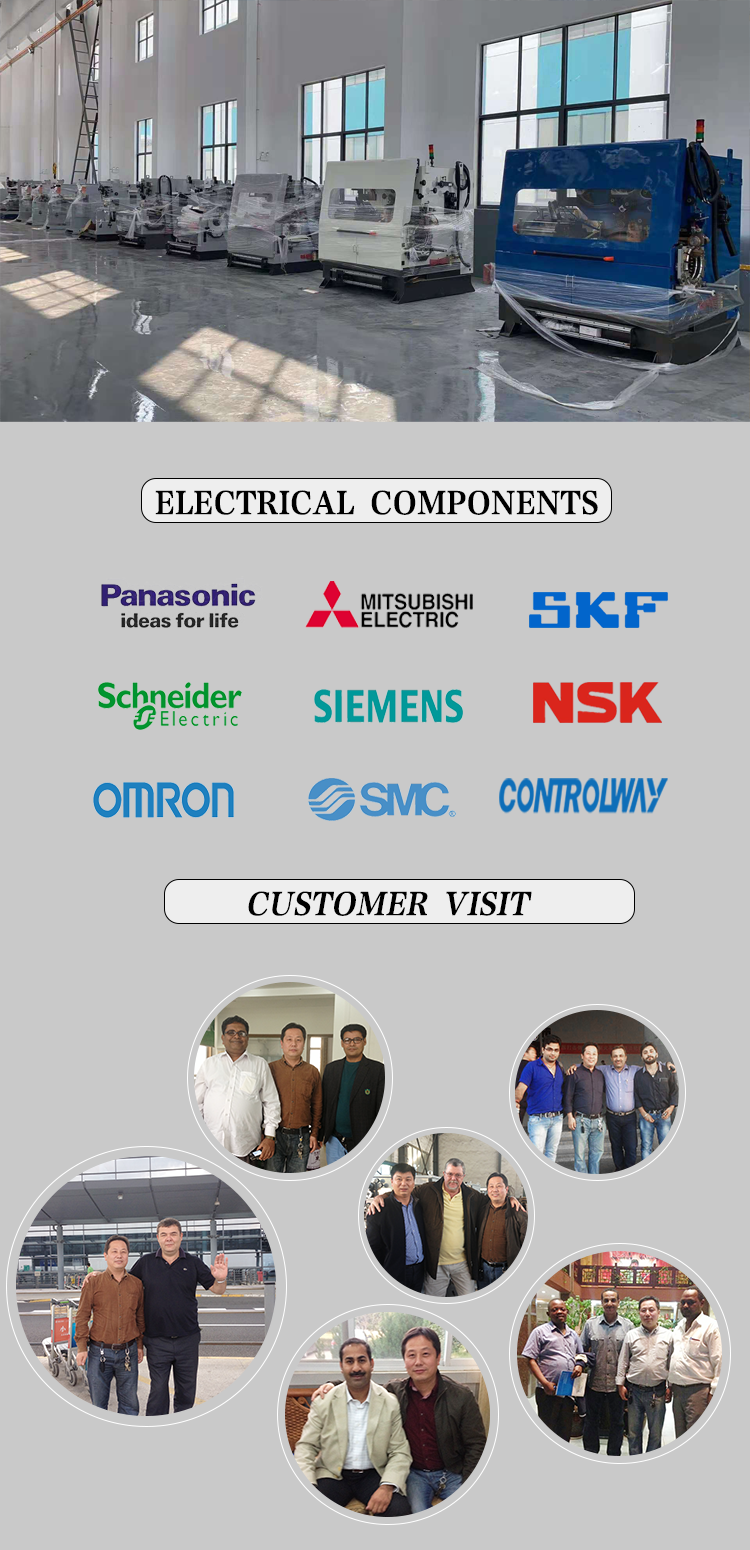

♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.

Exhibition

2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou

Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
