Semi Automatic Aerosol Metal Can Making Machine Production Line

Semi Automatic Aerosol Metal Can Making Machine Production Line

$10000.00

≥1 set

Min. Order:: 1 set

Min. Order:: 1 set

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100 Set/Sets per Year
Payment Type:	L/C,D/P,T/T
Port:	Shanghai

Product Description

Product Name:semi automatic aerosol metal can making machine production line

Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems

The follow is semi automatic aerosol metal can making machine production line with productivity of 25 cans/min

Product Paramenters

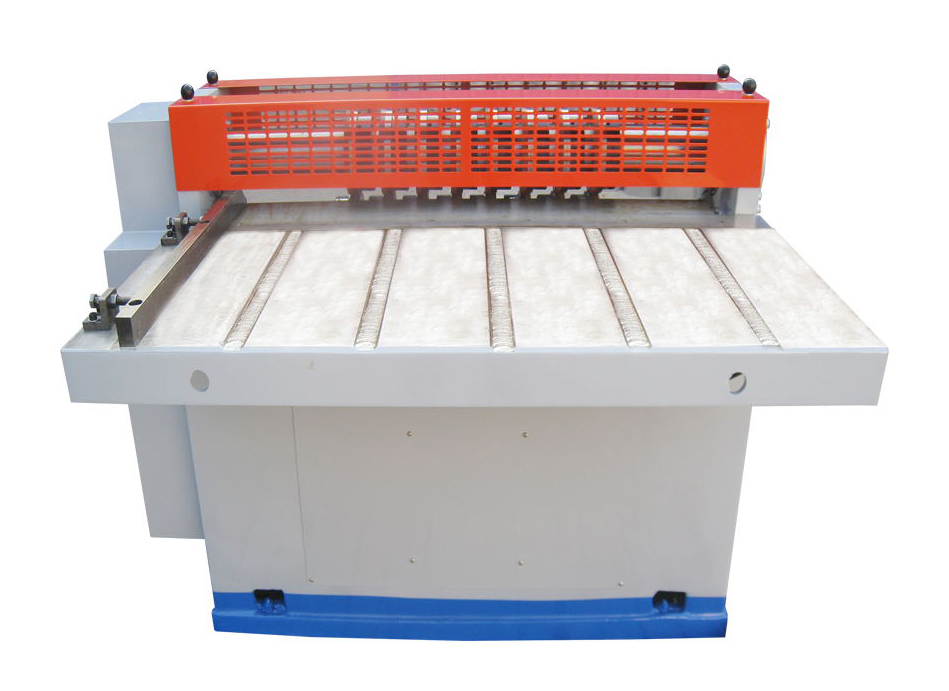

Slitting Machine

Slitting Machine is use to cut the printed tinplate base material (large square metal sheets) into body blanks of required size,it's the first stage in the production line.

Model	GTIB-30
Max Thickness	0.5mm
Max Width	1300mm
Power	1.8kw
Net Weight	1500kg
Dimension	1800x1600x1050mm

Automatic Roller

Automatic Roller is use to make body blanks into cylindrical shape,this is second step in the production line

Model	CY400-AT
Diameter range	Φ65-Φ300mm
Thickness	0.16-0.3mm
Max width	400mm
Net weight	450kg
Dimension	2000x900x1500mm

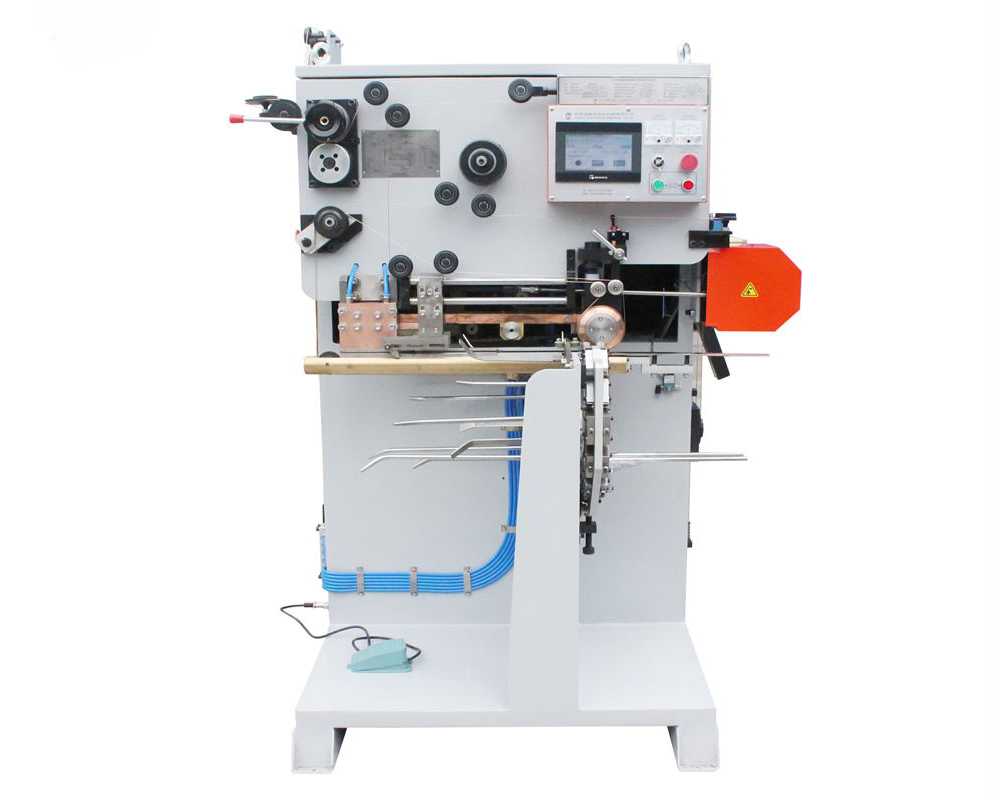

Tin Can Welding Machine

Tin Can Welding Machine is use to welding the cylindrical shape

Model	FB2000-A
Diameter Range	φ65～φ 290mm
Height Range	70～ 400mm
Thickness	0.16～0.4mm
Net Weight	1350kg
Dimension	1350×1450×2000mm

Automatic Neck + Flanging Machine

Automatic Neck + Flanging Machine is use to f;langing and necking for the can body

Model	GT3B12
Diameter Range	φ40-φ100mm
Height Range	65~280mm
Power	2.2kw
Weight	1500kg
Dimension	700x1700x1300mm

GT4A68 Penumatic Sealing Machine

GT4A68 Penumatic Sealing Machine is use to seaming the bottom and cover

Model	GT4A68
Diameter	φ52-φ180mm
Height Range	≤300mm
Capacity	25cans/min
Net Weight	600kg
Dimension	720x520x1760mm

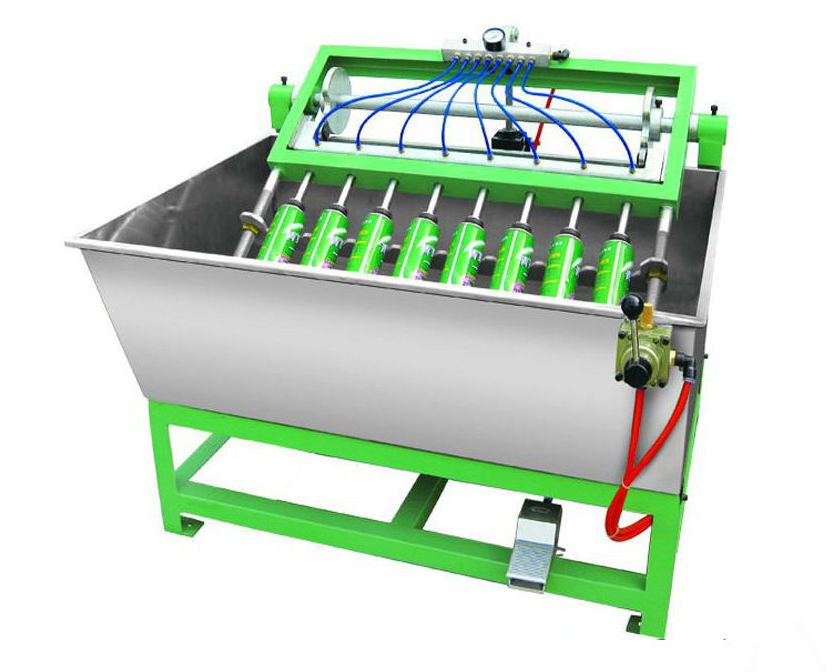

Leak Test Machine

Leak Test Machine is mainly use to leak testing for aerosol can

Diameter	45-73mm
Height	80-240mm
Hunting Manner	in water
Hunting air pressure	0.8Mpa
Net Weight	400kg
Dimension	720x520x1760mm

Our Advantages

♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & NSK bearings from Sweden or Japan.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.

Exhibition

2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou

Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
