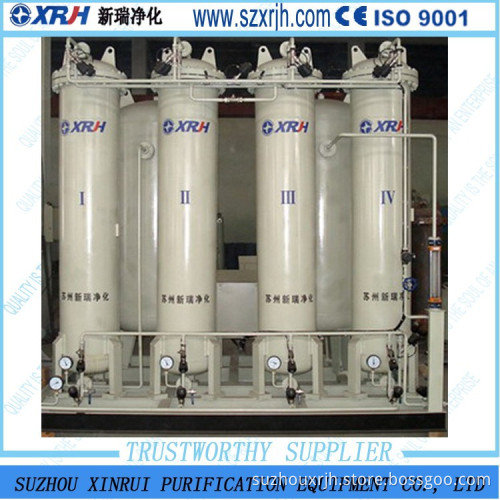

PSA Technology Hydrogen Generator

PSA Technology Hydrogen Generator

Model	Capacity (Nm³/h)	Feed Gas				Product gas: hydrogen gas
		Gas source	Pressure (Mpa)		Dew point (℃)	Dew point (℃)	Purity (%)	Pressure (Mpa)	Temperature
XRFQ29	5-2000	Mixed gas of hydrogen and nitrogen from ammonia decomposition and methanol cracking	0.8-2.4	≤-60		≤-60	≥99	0.7-2.3	Ambient temperature
XRFQ39							≥99.9
XRFQ49							≥99.99
XRFQ59							≥99.9999

      Main Technical Specifications:
Gas Treatment: (10-500)Nm3/h
Adsorption Pressure: 0.8Mpa-2.4Mpa
H2 Purity: 99.9-99.99%
Dew Point: -60ºC

 The Principle of PSA Hydrogen Generator

Under certain pressure, take advantage of the adsorption bed composed of many absorbent like activated carbon, silicon dioxide, molecular sieve and alumina, the hydrogen generator selectively adsorbs the impure components in the gas source with hydrogen included such as dissociated methanol, gas released from synthesis ammonia pool, catalytic cracking dry gas in the oil refinery, shift gas, water gas and semi-water gas under pressure, while hydrogen which is difficult to adsorb is put out from the entrance of adsorption tower as the product gas. Therefore, hydrogen purification is realized.
The Flow chart

Delivery Details:
Packaging details: Standard export packaging
Delivery details: Within 60-90days after receipt of the deposit
