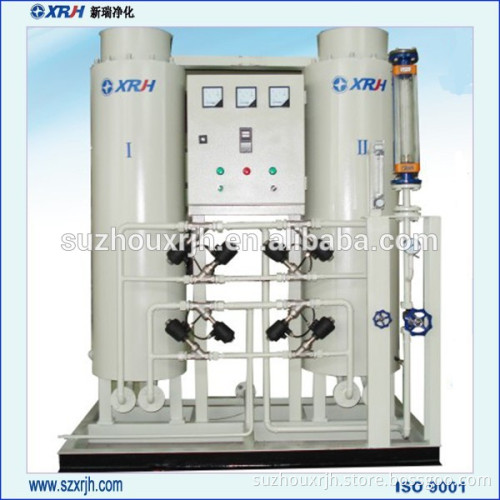

Heat Regeneration Gas Purifying Equipment (XRFC)

Heat Regeneration Gas Purifying Equipment (XRFC) Main Technical Specifications
Gas Treatment: (1-3000)Nm3/h
Working Pressure: ≤0.8Mpa
Gas Puirty: ≥99.9995%
Dew Point: ≤-60ºC

Model	Capacity (Nm³/h)	Feed Gas			Product Gas
		Gas source	Pressure (Mpa)	Dew point	Dew point  (	Purity (%)	Pressure (Mpa	Temperature
XRFC	5-3000	All kinds of gas like H2,N2 and O2	≤0.8	≤-10	≤-65	≥99.9995	≤0.8	Ambient temperature



Working Principle

XRFC series gas purification equipment used together with XRAQ series ammonia decomposition device can also be used for drying and purifying the heat regenerative gas. It can remove the water and residual ammonia in the mixed gas from ammonia decomposition. Also it can be used to deeply dewater and dry hydrogen, nitrogen and oxygen.  The flow chart of Heat Regenerative Gas Purification Equipment

  Packaging details: Standard export packaging
Delivery details: Within 60-90days after receipt of the deposit
