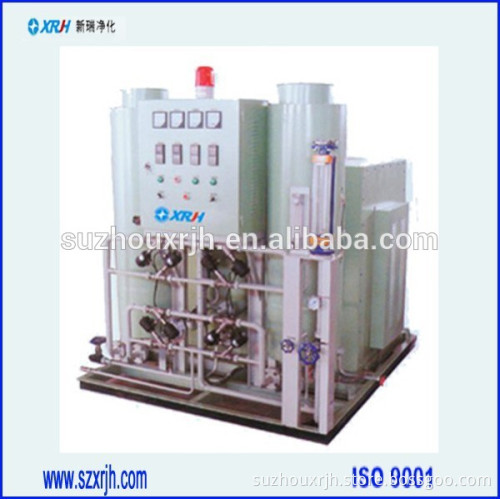

Automatic Ammonia cracker

  Automatic Ammonia cracker

Model	Capacity (Nm³/h)	Feed Gas			Product gas:hydrogen gas
		Gas source	Pressure (Mpa)	Dew point (℃)	Dew point (℃)	Residual ammonia (ppm)	Pressure (Mpa)	Temperature
XRAQ(FC)	5-500	Ammonia vaporized from liquid ammonia	0.05-0.2	≤-10	≤-65	≤3	0.05-0.1	Ambient temperature

  Working Principle This kind of hydrogen generator takes liquid ammonia as the source. Having being vaporized, the ammonia then is heated and decomposes into the mixed gas with 25% nitrogen and 75% hydrogen under the action of catalyst. In theory, one Kg of ammonia can produce 2.64 Nm3 mixed gas.
Based on the principle that the molecular sieve adsorbs different ammonia and water at different temperature, high purity gas is produced from the decomposed mixed gas by heating and regeneration at normal temperature. The switching of valves and heating time of the whole equipment are all under automatic control. Special personnel is no need to be on spot for handling and operation.   Technical Process: The decompressed liquid ammonia enters the decomposing furnace in which there is activated nickel catalyst after gasified in the vaporizer, the nickel catalyst would decompose at a temperature of 750ºC~800ºC and generate high temperature; The high temperature gas would make a heat exchange with the gaseous ammonia in the heat exchanger so the gaseous ammonia would absorb heat and heat up and then enter the decomposing furnace to decompose; The decomposed gas after heat exchange would further cool down in the chiller (ammonia chilling) and then enter the dryer (5A molecular sieve) which will remove the water and other impurities. Its purity can achieve: With dew point of -60 ºC, less than 5PPM relict ammonia. Generally there are two dryers on of which absorbs and dries the decomposed hydrogen and nitrogen that entered and the other releases the water and relict ammonia in heating situation (generally 250~300ºC). Alternately used, the two dryers can be used repeatedly. Features and Advantages The gas made in this method is a good protective gas which can be used widely in semiconductor industry, metallurgical industry and other industries and science research which need protective gas.
1. Ammonia is easy to decompose: With not very high pressure, under catalysts, and a temperature controlled at 750~800ºC, the ammonia will nearly completely decompose, with the decomposing rate reaching 99.9%.
2. Easy to refine the gas: As the raw material, the liquid ammonia is of very high purity. The volatile impurities are only little inert gas and water dissolved in the liquid ammonia and there is nearly no oxygen. Meanwhile, under such conditions, the ammonia decomposition is irreversible. So the water can be removed by adsorbing with a dew point of -60 ºCwhile the gas doing through the 5A molecular sieve. By this way, the nonmetallic elements, for example, chlorine and oxygen which are unpopular in semiconductor industry can be removed.
3. In China, the liquid ammonia as raw material is accessible at a low price and the raw material consumption is also relatively smaller( In theory, each Kg of ammonia can create 2.64 Nm3 mixed gas). Package and Delivery:
Packaging details: standard export packaging
Delivery details:within 60-90days after receipt of the deposit FAQ What is the material of the electric furnace of the ammonia cracker? It is made of 310S,which is resistant to high temperature and corrosion.      What is the catalyst of our ammonia cracker?   For our ammonia cracker, we use nickel catalyst.       What is the requirement for the liquid ammonia?   As the source material of our liquid ammonia,  Grade-A level or above is required.
