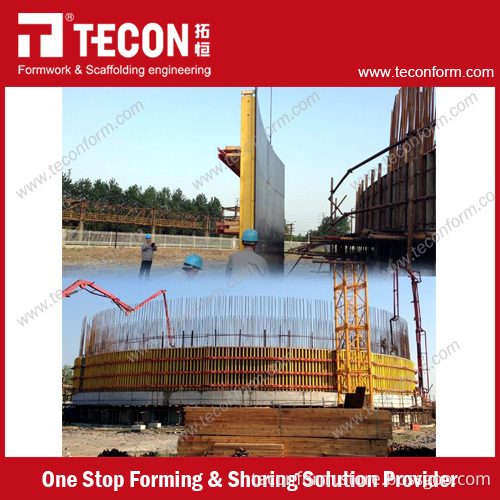

Wall Circular Wooden Formwork System

Wall Circular Wooden Formwork System Product Description TECON BASE 20 Formwork (Wall Circular Wooden Formwork System ), is the basic wall formwork mainly consisted by H20 timber beam and steel waler with plywood. It can be easily shaped to different sizes and shapes according to specific projects. Meanwhile, it is efficient and cost-effective, thus is widely used in the sites across the world. Technical Specification   * Basic unit sizes(width*height): 1.0m*3.0/3.6/4m, 1.25m*3.0/3.6/4m, 1.5m*3.0/3.6/4m, 2.0m*3.0/3.6/4m,            2.0m*3.0/3.6/4m, 3.0m*3.0/3.6/4m, 4.0m*3.0/3.6/4m, 5.0m*3.0/3.6/4m, 6.0m*3.0/3.6/4m * Or any customized unit sizes according to structural drawings  * Upto 6m wall height with just one pouring * Main components: 18mm brown film plywood; H20 timber beam(EN); 2[12 or 2[10 steel waler   Feature * Ready to use after pre-assembly * Efficent and time-saving especially for large area walls where request for repeated castings * Can be shaped into any size and shape according to different project structures * Can meet different fresh concrete pressure by spacing the timbers and walings  * Can produce fair-faced concrete finishing  * Can be transfered into adjustable column formwork according to TECON specially arranged solution Detailed Images   For residencial & commercial buildings, concrete tanks, basement, bridge piers, columns ect..     In case you need our proposal including formwork planning, please feel free to send us your structural drawings so our engineer can work it out for your study.   Our DOKA background technical team will also provide strong technical planning support and on-site supervisions. Packaging & Shipping By steel pallet or by strap in bundle, or according to client's request. Our Services * Consultancy    Offer you a general idea of formwork & scaffold among TECON various systems, to fit your project demand  * Technical Planning    Customized forming & shoring solution proposal according to your structural drawing by Auto-cad * Order Delivery     From fabrication to loading, fast to your site with standard export packages * On-site Supervision    Shop drawing, user manual, and even send our supervisor to your site for training and supervision   Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.   Company Information

	One Stop Forming & Shoring Solution Provider
Product Line	1. Wall Formwork; (Plastic/H20 beam/Metal/Aluminum)   2. Slab Formwork; (Plastic/H20 beam/Metal/Aluminum)   3. Column Formwork; (Plastic/H20 beam/Metal)   4. Special Formwork; (Climbing Formwork /Slip Formwork)   5. Girder; (H20 Timber Beam/ Aluminum Beam)   6. Plywood; (12/15/18/21mm)   7. Shoring Prop; (Heavy Duty/Light Duty/Acrow)   8. Scaffolding; (Ringlock/Cuplock/Kwikstage/Walk Through)

    As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world.   Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development.   At TECON, you will experience excellent one-stop service throughojut the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these.   We have a wide range of products line which covers wall formwork, slab formwork, column formwork, climbing formwork, slip formwork, girder, plywood, shoring prop, and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects.   TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service.   TECON, for those who build. - Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision   Should you have any inquiry, please feel free to contact us. We are pleased to further discussion with you.
