TECON Reusable Plastic Formwork TP60

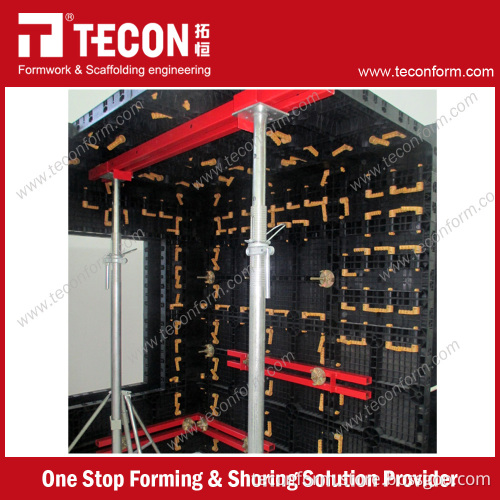

  TECON Reusable Plastic Formwork TP60     TECON Plastic Formwork TP60, is a new material formwork system made from ABS, PC and fiber glass. Due to the light weight of panels and fast locking design of erection handles, it provides project sites with the most convenient and efficient forming solution ever.   Thanks to TECON specially designed steel accessories, TP60 can produce walls, columns, slabs & beams with various sizes. Optimize the lead time and cost for your project.   Detailed Images       Product Description 1. Advantage Can build modular houses for shear wall, slab, column and beams with various sizes Up to 100 times usages under good maintenance Unit cost per casting of material is much lower than regular formwork Average weight 15kg per square meter only It helps to save construction time a lot No need to use form release agent, that is another saving Concrete surface is smoother as the plastic formwork surface does not absorb the concrete water, that will save a lot of thick plastering work for surface leveling and smoothing General labor can do the job which save the carpenter cost and manpower Output is faster as no much saw cutting and nailing works involved Site is tidier 2. Specification

Number	Item Name	Description(MM)	Weight(KG)	Article Number
1	Panel TP180/60	1800*600*70	15	51000100
2	Panel TP120/60	1200*600*70	10.6	51000200
3	Panel TP25/60	250*600*70	2.42	51000300
4	Panel TP20/60	200*600*70	2.05	51000400
5	Panel TP10/60	100*600*70	1.38	51000500
6	Panel TP25/25	250*250*70	1.02	51000600
7	Panel TP25/20	250*200*70	0.87	51000700
8	Panel TP20/20	200*200*70	0.78	51000800
9	Inner Corner TP60/20	600*200*200	3.4	51000900
10	Inner Corner TP25/20	250*200*200	1.7	51001000
11	Inner Corner 20/20	200*200*200	1.43	51002000
12	Inner top Corner 20/20	200*200*200	1.7	51003000
13	Outer Corner 60/10	600*100*50	2.08	51004000
14	OUter Corner 25/10	250*100*70	0.88	51005000
15	Joint Plate 60-10	600*70*10	0.25	51006000
16	Joinit Plate 60-20	600*70*20	0.37	51007000
17	Column Panel 75/73	750*730*70	8.7	51008000
18	Erection handle	/	0.075	51009000
19	Plug	/	0.0045	51010000
20	Sealing ring	/	0.002	51020000

  3. Application     TECON Plastic Formwork TP60 is widely used in villas, commercial buildings, foundations, basement ect..     Especially for foam concrete,  used together with plastic formwork TP60 across from many construction sites, they are born to match with each other.
   Packaging & Shipping Our Services     -  Consultancy    Offer you a general idea of formwork & scaffold among TECON various systems, to fit your project demand    -  Technical Planning    Customized forming & shoring solution proposal according to your structural drawing by Auto-cad   -  Order Delivery     From fabrication to loading, fast to your site with standard export packages   -  On-site Supervision    Shop drawing, user manual, and even send our supervisor to your site for training and supervision   Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.   Company Information

	One Stop Forming & Shoring Solution Provider
Product Line	1. Wall Formwork; (Plastic/H20 beam/Metal/Aluminum)   2. Slab Formwork; (Plastic/H20 beam/Metal/Aluminum)   3. Column Formwork; (Plastic/H20 beam/Metal)   4. Special Formwork; (Climbing Formwork /Slip Formwork)   5. Girder; (H20 Timber Beam/ Aluminum Beam)   6. Plywood; (12/15/18/21mm)   7. Shoring Prop; (Heavy Duty/Light Duty/Acrow)   8. Scaffolding; (Ringlock/Cuplock/Kwikstage/Walk Through)

          As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world.     Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development.     At TECON, you will experience excellent one-stop service throughojut the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these.     We have a wide range of products line which covers wall formwork, slab formwork, column formwork, climbing formwork, slip formwork, girder, plywood, shoring prop, and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects.     TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service.     TECON, for those who build.       - Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision    Should you have any inquiry, please feel free to contact us. We are pleased to further discussion with you.
