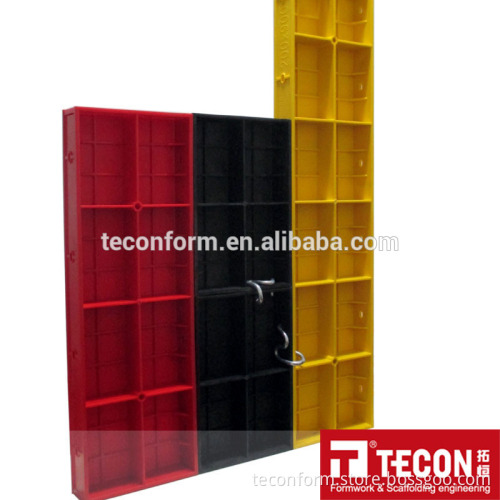

TECON Plastic Formwork ECO

Product Description   TECON Plastic Formwork ECO is a new material formwork system made from modified pp and fiber glass. It provides project sites with convenient erection and light weight thus is very easy to handle. Compared with TECON Plastic Formwork TP60, it is much more economical for low cost projects. .           Feature   * Light weight modular panel made from modified pp and fiber glass thus can be handled by manual * Save budget a great deal even compared with TECON Plastic Formwork TP60 * Easy erection by steel connection pins thus very efficient * Can work under in hot or cold areas * Save space in ware house thus save your stock cost          * Basic unit sizes(width*height)

Description		Weight (Kg)	Article Number
Panel ECO 15/30	150 * 300	0.5	52200100
Panel ECO 20/30	200 * 300	0.66	52200200
Panel ECO 15/60	150 * 600	1.00	52200300
Panel ECO 20/60	200 * 600	1.32	52200400
Panel ECO 25/60	250 * 600	1.65	52200500
Panel ECO 30/60	300 * 600	1.98	52200600
Panel ECO 10/90	100 * 900	0.99	52200700
Panel ECO 15/90	150 * 900	1.485	52200800
Panel ECO 20/90	200 * 900	1.98	52200900
Panel ECO 25/90	250 * 900	2.475	52201000
Panel ECO 30/90	300 * 900	2.97	52201100
Panel ECO 60/90	600 * 900	5.94	52201200
Panel ECO 30/150	300 * 1500	4.95	52201300
Panel ECO 40/150	400 * 1500	6.6	52201400
Panel ECO 45/180	450 * 1800	8.91	52201500
Panel ECO 50/180	500 * 1800	9.9	52201600
Panel ECO 60/180	600 * 1800	11.88	52201700
Panel ECO 90/180	900 * 1800	17.82	52201800
Outer Corner Panel	55 * 55 * 900	1.089	52201900
Inner Corner Panel	150 * 50 * 450	1.485	52202000

  * Up to 50 times usage under good maintenance       * Can bear fresh concrete pressure up to 60KN/sqm with proper reinforcement like scaffold tubes              Packaging & Shipping   By pallet or according to client request. Our Services - Consultancy    Offer you a general idea about formwork & scaffolding  - Technical Planning    Customized forming & shoring solution proposal according to your structural drawing by Auto-cad -  Logistics    Fast to your site with proper packages & well organized loadings -  On-site supervision    Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision * Remark Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.       Company Information    Formwork & Scaffolding engineering   - Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision   As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughout the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build.
