Economic TECON plastic formwork panel for concrete

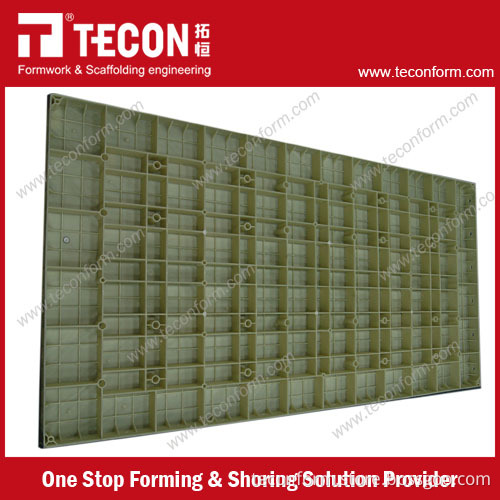

Economic TECON plastic formwork panel for concrete   TECON Plastic Wall Formwork ECO, is a new material formwork system made from modified pp and fiber glass. It provides project sites with convenient erection and light weight thus is very easy to handle. Compared with TECON Plastic Formwork TP60, it is much more economical for low cost projects.     Detailed Images       Product Description 1. Advantage Light weight modular panel made from modified pp and fiber glass thus can be handled by manual Can bear fresh concrete pressure up to 60KN/sqm with proper reinforcement like scaffold tubes
Save budget a great deal even compared with TECON Plastic Formwork TP60 Easy erection by steel connection pins thus very efficient Save space in ware house thus save your stock cost Can work under in hot or cold areas 2. Specification  * Basic unit sizes(width*height)

Description		Weight (Kg)	Article Number
Panel ECO 15/30	150 * 300	0.5	52200100
Panel ECO 20/30	200 * 300	0.66	52200200
Panel ECO 15/60	150 * 600	1.00	52200300
Panel ECO 20/60	200 * 600	1.32	52200400
Panel ECO 25/60	250 * 600	1.65	52200500
Panel ECO 30/60	300 * 600	1.98	52200600
Panel ECO 10/90	100 * 900	0.99	52200700
Panel ECO 15/90	150 * 900	1.485	52200800
Panel ECO 20/90	200 * 900	1.98	52200900
Panel ECO 25/90	250 * 900	2.475	52201000
Panel ECO 30/90	300 * 900	2.97	52201100
Panel ECO 60/90	600 * 900	5.94	52201200
Panel ECO 30/150	300 * 1500	4.95	52201300
Panel ECO 40/150	400 * 1500	6.6	52201400
Panel ECO 45/180	450 * 1800	8.91	52201500
Panel ECO 50/180	500 * 1800	9.9	52201600
Panel ECO 60/180	600 * 1800	11.88	52201700
Panel ECO 90/180	900 * 1800	17.82	52201800
Outer Corner Panel	55 * 55 * 900	1.089	52201900
Inner Corner Panel	150 * 50 * 450	1.485	52202000

  3. Application      TECON Plastic Formwork ECO is widely used in villas, commercial buildings, foundations, basement ect..         Especially for foam concrete,  used together with plastic formwork ECO across from many construction sites, they are born to match with each other.     Packaging & Shipping     For 1x20'GP, it can loading 400 m2 TECON plastic formwork ECO without steel accessories. For 1x40'HQ', it can loading 600 m2 TECON plastic formwork ECO  without steel accessories.  Our Services   - Consultancy    Offer you a general idea about formwork & scaffolding  - Technical Planning    Customized forming & shoring solution proposal according to your structural drawing by Auto-cad -  Logistics    Fast to your site with proper packages & well organized loadings -  On-site supervision    Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision * Remark Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party. Company Information

	One Stop Forming & Shoring Solution Provider
Product Line	1. Wall Formwork; (Plastic/H20 beam/Metal/Aluminum)    2. Slab Formwork; (Plastic/H20 beam/Metal/Aluminum)   3. Column Formwork; (Plastic/H20 beam/Metal)   4. Special Formwork; (Climbing Formwork /Slip Formwork)   5. Girder; (H20 Timber Beam/ Aluminum Beam)   6. Plywood; (12/15/18/21mm)   7. Shoring Prop; (Heavy Duty/Light Duty/Acrow)   8. Scaffolding; (Ringlock/Cuplock/Kwikstage/Walk Through)

    As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world.   Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development.   At TECON, you will experience excellent one-stop service throughout the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these.   We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects.   TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service.   TECON, for those who build.       - Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision        Should you have any inquiry, please feel free to contact us. We are pleased to further discussion with you.
