Reusable Plastic Formwork System
- Delivery Time:
- 18 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China (Mainland) |
|---|
Product Description
Product Description

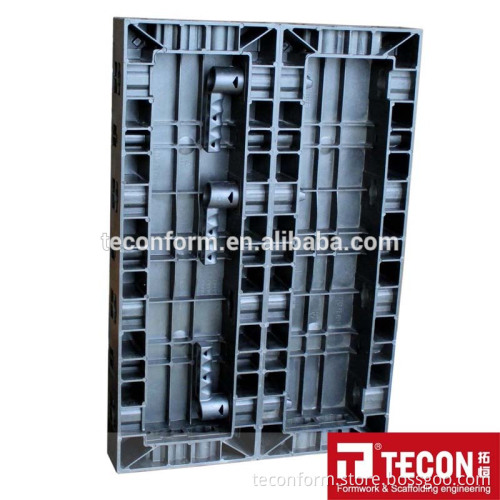

Product Description TECON Plastic Formwork TP60 is a new material formwork system made from plastic. It provides project sites with convenient erection with light weight thus is very easy to handle. It also saves your cost greatly compared with other material formwork systems.
Feature * Light weight modular panel made from plastic thus can be handled by manual * Save budget a great deal compared with other material formwork systems * Easy erection by a simple 90 degree rotation of erection handle with smooth joints between panels * Can work under in hot or cold areas * Durable enough for repeat casting and can be recycled eventually
Technical Specification * Basic unit sizes(width*height) & weight :
* Can bear fresh concrete pressure upto 60KN/sqm * Upto 100 times usage only by changing the shifting corners at four right angles.
Packaging & Shipping TP60 panels can be well packed and stored one by one, save a lot of space and transportation cost for your site. Our Services
- Consultancy Offer you a general idea about formwork & scaffolding - Technical Planning Customized forming & shoring solution proposal according to your structural drawing by Auto-cad - Logistics Fast to your site with proper packages & well organized loadings - On-site supervision Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision * Remark Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.
Company Information Formwork & Scaffolding engineering - Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughout the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build.
Feature * Light weight modular panel made from plastic thus can be handled by manual * Save budget a great deal compared with other material formwork systems * Easy erection by a simple 90 degree rotation of erection handle with smooth joints between panels * Can work under in hot or cold areas * Durable enough for repeat casting and can be recycled eventually Technical Specification * Basic unit sizes(width*height) & weight : | Description | Sizes(mm) | Unit weight(kg) |
| Panel TP180/60 | 1800*600 | 16 |
| Panel TP120/60 | 1200*600 | 10.6 |
| Panel TP25/60 | 250*600 | 2.42 |
| Panel TP20/60 | 200*600 | 2.05 |
| Panel TP15/60 | 150*600 | 1.65 |
| Panel TP10/60 | 100*600 | 1.38 |
| Inner corner 60/20 | 200*600 | 3.4 |
| Outer corner 60/10 | 100/50*600 | 2.08 |
| Column panel 75/73 | 750*730 | 8.7 |
Packaging & Shipping TP60 panels can be well packed and stored one by one, save a lot of space and transportation cost for your site. Our Services - Consultancy Offer you a general idea about formwork & scaffolding - Technical Planning Customized forming & shoring solution proposal according to your structural drawing by Auto-cad - Logistics Fast to your site with proper packages & well organized loadings - On-site supervision Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision * Remark Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.
Company Information Formwork & Scaffolding engineering - Doka & Peri background engineers- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughout the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build.
