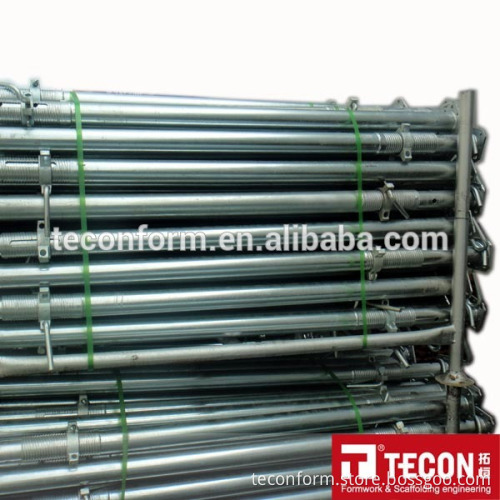

TECON Heavy Duty Shoring Prop

    Product Description  TECON Heavy Duty Shoring Props, as the most popolar prop serie among all TECON telescopic props, is designed and manufactured according to EN1065. The sizes are available from 1500mm to 5000mm with working bearing load limits from 20kN to 30kN.             Feature   * Convenient erection with its nut and handle * 20kN(D class) & 30kN(E class) at different open lengths for your selection * Anti-dislocation of inner tubes flying out of outer tube * 100mm safe zone design on the top of inner tube avoiding any injury on the hands of users * Hot dip galvanization treatment prevent the prop from corrosion, other treatment are also available * According to EN 1065 standard           Technical Specification

ITEM NO.	Closed Length(mm)	Open Length(mm)	Reference Weight(kg)	Work Bearing Capacity
TEP-D25	1450	2500	15.1	20kN
TEP-D30	1800	3000	17.1	20kN
TEP-D35	2000	3500	18.9	20kN
TEP-D40	2200	4000	22.2	20kN
TEP-D50	2820	5000	35.2	20kN
TEP-E30	1800	3000	20.0	30kN
TEP-E35	2000	3500	24.3	30kN
TEP-E40	2200	4000	26.8	30kN

      Application

For shoring purpose, in various kind of slab projects.     Our Services - Consultancy    Offer you a general idea about formwork & scaffolding  - Technical Planning    Customized forming & shoring solution proposal according to your structural drawing by Auto-cad -  Logistics    Fast to your site with proper packages & well organized loadings -  On-site supervision    Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision * Remark Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.   Company Information    Formwork & Scaffolding engineering   - Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision   As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughout the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build.
