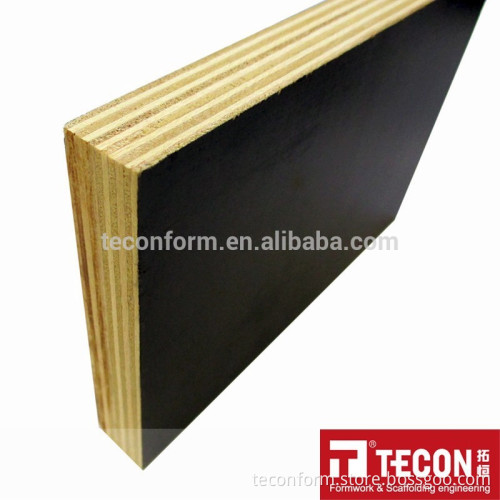

Brown Film Faced Plywood

        Product Description Brown Film Faced Plywood  ( TECON Film Faced Plywood )  as one of the major shuttering materials in TECON formwork system, Brown Film Faced Plywood is widely used in shear wall formwork, slab formwork, column formwork and beam formwork etc..  Three different grades of cores can meet most of your site requirements. Clean and tidy concrete surface, or even fair faced concrete are availabel with TECON Film Faced Plywood.                                                                                                                                                    Feature   * Different grades and sizes for selection
* High load capacity and long life cycles
* Can produce nice & tidy concrete finishing with concrete agent
* Easy to clean before next casting
* Easy cutting, drilling & nailing
* Can be shaped into different shapes together with shaping wood       Technical Specification     * F/B: Dynea Browm film
* Glue: WBP
* Process: Three times hot pressed including film
* Moistture content: 8%-12%
* Package: By carton box and bundled by steel strip

Series	TLP	TMP	THP
Material	Poplar Core	Hardwood Core	Birch Core
Life Cycle	around 10 times	around 20 times	around 30 times
Sizes	40HQ QTY (pcs)	40HQ QTY (pcs)	40HQ QTY (pcs)
1220*2440*12mm	1490	1450	1296
1220*2440*15mm	1200	1120	1036
1220*2440*18mm	1008	936	864
1220*2440*21mm	916	836	766
1250*2500*18mm	936	882	840
1250*2500*21mm	810	756	720

        Our Services - Consultancy    Offer you a general idea about formwork & scaffolding  - Technical Planning    Customized forming & shoring solution proposal according to your structural drawing by Auto-cad -  Logistics    Fast to your site with proper packages & well organized loadings -  On-site supervision    Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision * Remark Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.   Company Information    Formwork & Scaffolding engineering   - Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision   As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughout the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build.
