Walk Through Scaffolding

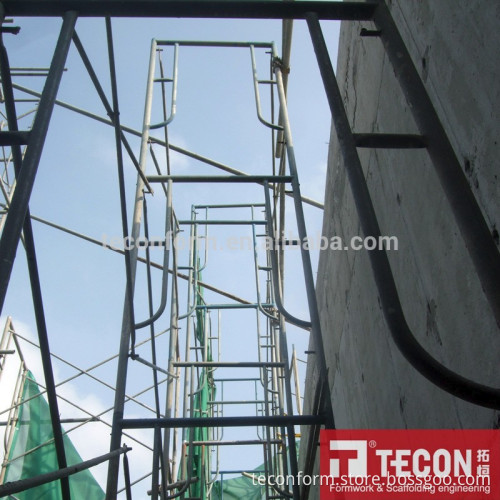

        Product Description Walk Through Scaffolding (TECON Walk Through Frame) is widely used as work platform on the construction site by proper bracing to the concrete wall. Meanwhile, Walk Through Scaffolding is also widely used for facade painting and decoration, even movable platform with maximum 3 layers height for inside jobs.                                                                                                                                                                                                            Feature   * Consisted by main frames, cross braces, connectors, catwalks, base jacks with or without casters etc.
* Designed to gate type for people walking through conveniently
* Light in weight thus can be easily erected
* Casters and base jacks ensures flexible movement and stability
* Maximum 3 layers height when be used as movable platform with casters       Technical Specification   * Main material: Q195, Q215B, Q235
* Surface Finish: painted, powder coated, zinc-plated, hot dip galvanization

Item Name	Specification(mm)	Outer/Inner Tube(mm)	Weight (kg)
Main Frame	1219*1930*1800	ø42.7*2.3 / ø27*1.8	14.8
Main Frame	1219*1700*1800	ø42.7*2.3 / ø27*1.8	13.2
Main Frame	1219*1524*1800	ø42.7*2.3 / ø27*1.8	12.8
Main Frame	1219*914*1800	ø2.7*2.3 / ø27*1.8	8.1
Main Frame	914*1700*1800	ø42.7*2.3 / ø27*1.8	12.6
Cross Brace	L=2220	ø22*1.8	6.7
Connector	/	ø36*2 / 8.5	0.4
Solid jack with caster	/	ø33*310; 150*50	5.5
Catwalk	1800*400*2.2	/	12.8

    Our Services - Consultancy    Offer you a general idea about formwork & scaffolding  - Technical Planning    Customized forming & shoring solution proposal according to your structural drawing by Auto-cad -  Logistics    Fast to your site with proper packages & well organized loadings -  On-site supervision    Shop draiwng, assembly drawing, and even send our supervisor to your site for training and supervision * Remark Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party.     Company Information Formwork & Scaffolding engineering - DOKA & PERI background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughout the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service.   TECON, for those who build.
