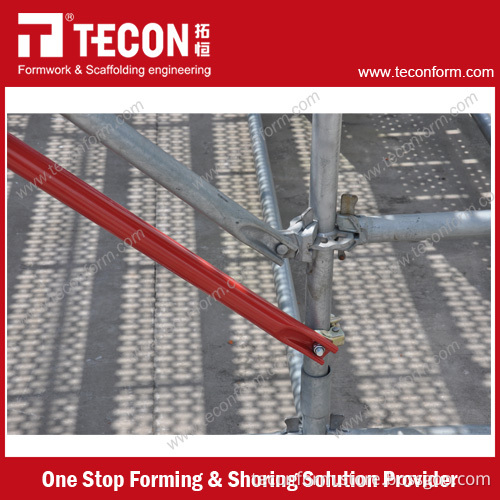

Ringlock Scaffolding System
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu, China (Mainland) |
|---|
Product Description
Product Description
Ringlock Scaffolding System Product Description TECON Ringlock system is a kind of conventional scaffolding system which have already been recongnized and used widely all over the world. With two different diameter standards O.D.48/O.D.60, they can meet almost all your shoring or facade purpose on cost saving and safety basis.
Basic Components: Standar, Ledger, Diagonal Brace, Brindging Ledger, U head Jack, Base Jack, Base Collar, Side Bracket, Toe Board, Steel Plank, Stair, etc.. Technical Specification * Ringlock Standard: Q345, O.D.48mm*3.2mm/60mm*3.2mm, length - 0.5m/1m/1.5m/2m/2.5m/3m * Ringlock Ledger: Q235, O.D.48*2.5mm, length - 0.3m/0.6m/0.9m/1.2m/1.5m/1.8m/2.0m/2.5m/3m * Minimum 60µm hot-dipped galvanization guarantees long duration of usage * Other surface treatment is also available, such as painted, powder coated and electro galvanization
Feature * Two different O.D. of standards(48/60) for shoring & façade seperately ensures its wide application * Good loading capacity * Easy and fast to assemble and dismantle * Stable and durable thanks to its structual design & automatic welding quality Detailed Images
For bridge, metro station, flyover road, buildings & other civil projects need shoring or façade usage etc..
In case you need the technical planning with drawings and price, please feel free to let us know when you get specific plans so our engineer can work it out for your study. Our DOKA background technical team will also provide strong technical planning support and on-site supervisions. Packaging & Shipping Ringlock Scaffold packing:
* Normally TECON ringlock scaffold is loaded to the container in bulk * Also can be packed by pallet * According to client request Our Services
* Consultancy Offer you a general idea of formwork & scaffold among TECON various systems, to fit your project demand * Technical Planning Customized forming & shoring solution proposal according to your structural drawing by Auto-cad * Order Delivery From fabrication to loading, fast to your site with standard export packages * On-site Supervision Shop drawing, user manual, and even send our supervisor to your site for training and supervision Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party. Company Information
As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughojut the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers wall formwork, slab formwork, column formwork, climbing formwork, slip formwork, girder, plywood, shoring prop, and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build.
- Doka & Peri background engineers
- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision Should you have any inquiry, please feel free to contact us. We are pleased to further discussion with you.
Basic Components: Standar, Ledger, Diagonal Brace, Brindging Ledger, U head Jack, Base Jack, Base Collar, Side Bracket, Toe Board, Steel Plank, Stair, etc.. Technical Specification * Ringlock Standard: Q345, O.D.48mm*3.2mm/60mm*3.2mm, length - 0.5m/1m/1.5m/2m/2.5m/3m * Ringlock Ledger: Q235, O.D.48*2.5mm, length - 0.3m/0.6m/0.9m/1.2m/1.5m/1.8m/2.0m/2.5m/3m * Minimum 60µm hot-dipped galvanization guarantees long duration of usage * Other surface treatment is also available, such as painted, powder coated and electro galvanization Feature * Two different O.D. of standards(48/60) for shoring & façade seperately ensures its wide application * Good loading capacity * Easy and fast to assemble and dismantle * Stable and durable thanks to its structual design & automatic welding quality Detailed Images For bridge, metro station, flyover road, buildings & other civil projects need shoring or façade usage etc.. In case you need the technical planning with drawings and price, please feel free to let us know when you get specific plans so our engineer can work it out for your study. Our DOKA background technical team will also provide strong technical planning support and on-site supervisions. Packaging & Shipping Ringlock Scaffold packing: * Normally TECON ringlock scaffold is loaded to the container in bulk * Also can be packed by pallet * According to client request Our Services * Consultancy Offer you a general idea of formwork & scaffold among TECON various systems, to fit your project demand * Technical Planning Customized forming & shoring solution proposal according to your structural drawing by Auto-cad * Order Delivery From fabrication to loading, fast to your site with standard export packages * On-site Supervision Shop drawing, user manual, and even send our supervisor to your site for training and supervision Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements. TECON Certification of Quality will be issued when the certain batch of products passes finished products inspection together with all QC profiles in previous phases. Pre-shipment inspection will be also supported according to clients’ request or by third-party. Company Information
| One Stop Forming & Shoring Solution Provider |
| Product Line
| 1. Wall Formwork; (Plastic/H20 beam/Metal/Aluminum)
2. Slab Formwork; (Plastic/H20 beam/Metal/Aluminum)
3. Column Formwork; (Plastic/H20 beam/Metal)
4. Special Formwork; (Climbing Formwork /Slip Formwork)
5. Girder; (H20 Timber Beam/ Aluminum Beam)
6. Plywood; (12/15/18/21mm)
7. Shoring Prop; (Heavy Duty/Light Duty/Acrow)
8. Scaffolding; (Ringlock/Cuplock/Kwikstage/Walk Through)
|
As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. Thanks to TECON experienced technical team, safety, cost-effective and efficiency have already been considered even at the very beginning of product development. At TECON, you will experience excellent one-stop service throughojut the whole phases of your projects, from budgeting to completion. We assist you with optimal technical planning, order delivering, on-site supervising, and even more than these. We have a wide range of products line which covers wall formwork, slab formwork, column formwork, climbing formwork, slip formwork, girder, plywood, shoring prop, and all kinds of scaffoldings. They are widely used in residential & commercial buildings, fly-over roads, bridges, tanks, dams and other civil engineering projects. TECON business is built on working with customers together and striving to satisfy all their requirements, with its know-how, reliable quality & in-time service. TECON, for those who build. - Doka & Peri background engineers- Customized solution helps you work safe, save cost and convenient
- Excellent quality for formwork & scaffolding with wide choices
- Fast, flexible in order delivering
- After service including on-site supervision Should you have any inquiry, please feel free to contact us. We are pleased to further discussion with you.
