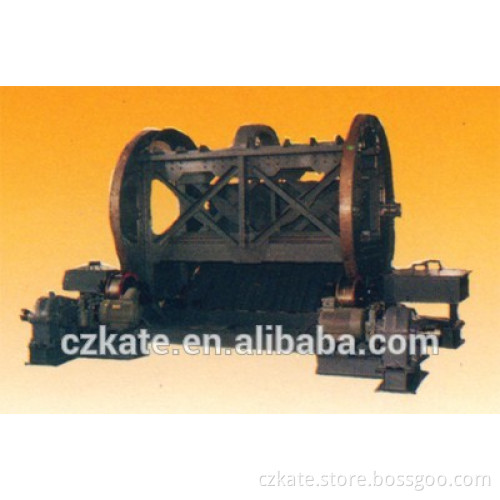

Wagon Tipper

We can supply circle shaped tipper with electric and pneumatic power, to tip over fixed mining wagons with capacity 0.7 cubic meters, and 1ton and 1.2 cubic meters, from side of wagons. It can tip over 1-2 wagons every time and be used safely in production system of underground and ground surface site. 2 type of tippers can be supplied. 1^st type tipper can use pusher with chins which pushes wagons into the tipper with coupler coupled. 2^nd type tipper can use slope rails in which wagons slide automatically into tipper with coupler dismantled.

Tippers can be also divided into coupler coupled and dismantled, tipping over from wagons of left and right sides. If necessary for dust proof shield, it shall be specified in orders.

Model and Main Parameters

Model	Parameters
	Times for Tipping Over r/min	Capacity t/h	Overall Sizes (LengthWidthHeight) mm	Roller Sizes (Dia.*Length) mm	Operation Way	Weight kg	Remark
FDB-1Z(L)	3	180	400035053320	2500*2200	Handle Button and Magnetic Iron	6620	Single Machine
FDB-1Y(R)	4	240
FDZ-1Z(L)	3	180	585635053320	2500*2200	Handle Button and Magnetic Iron	7350	Single Machine
FDZ-1Y(R)	4	240
TSO206-326(3)(L)	3	180	393525502328	2000*2200	Handle	4355	Single Machine
TSO206-326(3)(R)	4	240
Standard66(1)-326(L)	3	180	627035103320	2500*2200	Handle Button and Magnetic Iron	7855	Single Machine
Standard66(1)-326(R)	4	240
YSF0.7	5.21	420	666427853060	2500*3250	Pneumatic	11230	Double Machine
1.2 m³	2	680	616734653205	2700*4200	Handle	11655
	3	1020
