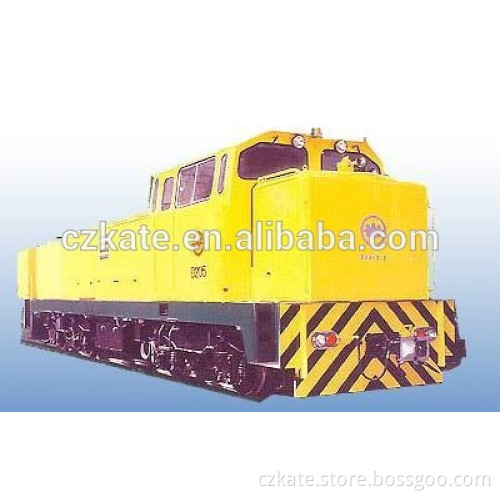

JMY600 Diesel Hydraulic Locomotive

 General Parameters of Locomotive Overall dimension (LxWxH) : 10,900 x 2,700 x 3,680 mm. Power:                                      551.5 KW Construction Speed:                 64 Km/h Maximum speed in CM :          50 Km/h Locomotive service weight:     56+/- 3% Ton Axle load:                                14+2%Ton Wheel Diameter:                             Dia. 850 +/- 5mm Track gauge distance:                      1435mm Minimum passing curve:          80mm @ max. speed of 10 km/h. Coupler type:                          Scharfenberg 35 Coupler height:                        770 +/- 5mm Brake type:                              JZ-7 Air Brake System. Diesel engine:  Diesel engine shall at least be compliant with EU-RL, Directive 2004/26/EC, Stage III or US EPA Tier 3 requirements for “off road” diesel engines. The concentration of toxic emissions in the neat exhaust of the diesel engine must not exceed the specified limits as stipulated in the above requirements.   Hydraulic Transmission Box Type:                                        A969 FI 2.2 (B) Type of torque converter:               B45, B85. Gear shifting mode:                 Automatic or Manual Battery unit:                             Type GNC 170 high power nickel-cadmium alkaline battery, 170 AH. One set 22 units.      19 Units of JMY600 diesel hydraulic locomoitve made in our company have been used in SMRT Ltd in singapore more than 20 years.      Especially in 2013, 4 units of JMY600 diesel hydraulic locomotives made in our company exported to SMRT.
