Solid Wood Double-End Tenoner Series

Specifications click machine

it is used in the forming and processing of the long side of multi-layer wood composite floor.

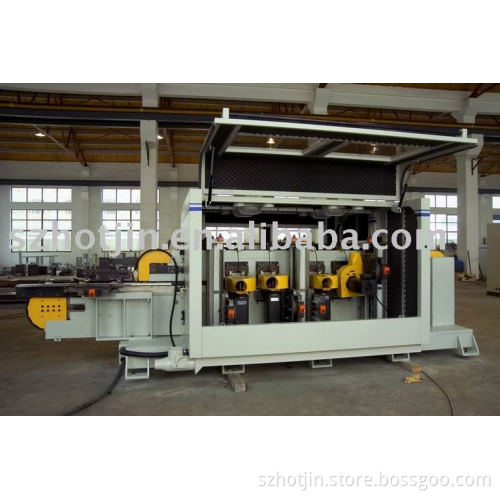

  click machine      Solid Wood  double end tenoner machine is mainly used in the forming and processing of the long side of laminate flooring and multi-layer wood composite floor. Each cutter axis can rotate according to different processing needs, so as to meet various complex clips. Monorail features in good stability and small working width, etc. , thus it has different working stations as required, i.e., precutting, forming, finishing, chamfering and clipping ,etc.

LTO2-8A		8-axis longitudinal  monorail
		double end tenoner machine(economical)
Working width(mm)	120-200	Rotate speed of cutter shaft(rpm)	6000-6400
Working thickness(mm)	6-15	Power of feeding motor(kw)	5.5
Feeding speed(m/min)	30-50	Gross weight of equipment(kg)	6000
Power of station 1(kw)	4	Axis dia.of station 1-5(mm)	Belt axis40×60
Power of station 2(kw)	4	Sweep-up dia.of cutter cover(mm)	120
Power of station 3(kw)	4	Sweep-up dia.of driver chain(mm)	100
Power of station 4(kw)	3	Cutter dia.(mm)	180-220
Height of working surface of table(mm)	1100
Remark:1.Monorail adopted for conveyance.
2.Our company reserves the right to make further technical improvement.
