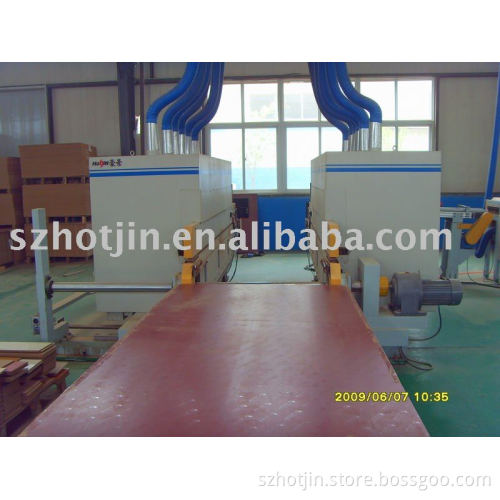

Wood composite flooring Double End Tenoner

Specifications It has different working stations as required,i.e.,precutting, knife jumping,forming,finishing,chamfering and clipping,etc.

          Wood composite flooring high-speed traverse double end tenoner machine adopts dual-leading-screw to adjust working width freely with a maximum width of 2500mm .It has different working stations as required , i.e., precutting , knife jumping , forming ,finishing ,chamfering and clipping ,etc.        The traverse axis (axis B) is mostly used for forming and processing the ends of multi-layer wood composite floor. It can work with top and bottom saw and jumping knife for trimming and precutting .Additional jumping knife (axis T) may be adopted upon special request.

DTS15-4B+8D		Wood composite flooring high-speed
		traverse double end tenoner machine
Working width(mm)	400-1500	Rotate speed of cutter shaft(rpm)	6000-7000
Working thickness(mm)	6-18	Power of feeding motor(kw)	3.7
Feeding speed(m/min)	15-30	Gross weight of equipment(kg)	7000
Power of station 1(kw)	3	Axis dia.of station 1-5(mm)	40×75
Power of station 2(kw)	3	Sweep-up dia.of cutter cover(mm)	120
Power of station 3(kw)	5.5	Sweep-up dia.of driver chain(mm)	100
Power of station 4(kw)	5.5	Cutter dia.(mm)	200-250
Power of station 5(kw)	3	Height of working surface of table(mm)	950
Power of station 6(kw)	5.5
Remark:1.D-random axis,B-saw with traverse axis,T-jumping cutter,the working width can be adjustedto 2.5m,Other specification is upon customer requipment.
2.Our company reserves the right to make further technical improvement.
