hotjin multi rip saw line

Specifications wood saw machine

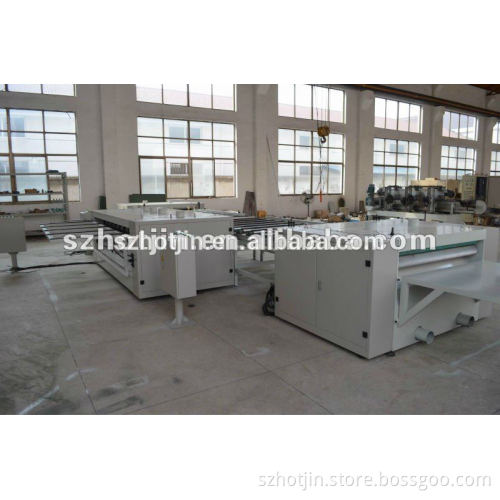

HJC serise multi rip saw line main function is cut big board into samll boards.

wood saw machine HJC series multi rip saw line main function is cut big board into small boards;it can work with the front and the back of automatic loading and unloading system to finish automatic feed in and feed out. Main model:Transverse multi rip saw HJC25-3/4; longitudinal multi rip saw HJC12-1 ,HJC12-2 and HJC13-1 and so on. Convenient and safe for operation, it features high efficiency and saving energy.

Technical parameters	Transverse multi rip saw		Longitudinal multi rip saw
Model	HJC25-3	HJC25-4	HJC12-1	HJC13-1	HJC12-2
Working width(mm)	2460	2460	1250	1380	1250
Working thickness(mm)	6-25	6-25	6-25	6-25	6-50
Board straightness(mm/m)	<=0.2	<=0.2	<=0.2	<=0.2	<=0.4
Saw blade outside dia. Inside dia.(mm)	300-30	300-30	300-80	300-80	300-80/100
Driving motor power(kw)	1.1	1.1	1.1	1.1	2.2
Feeding speed(m/min)	10-45	10-45	10-45	10-45	10-45
Main motor power(kw)	9	12	11	11	11+15
Spindle rotate speed(r/min)	2870	2870	2930	2930	2930
Working table height(mm)	950	950	740	740	950
Weight(T)	2.5T	2.6T	2T	2.5T	4T
