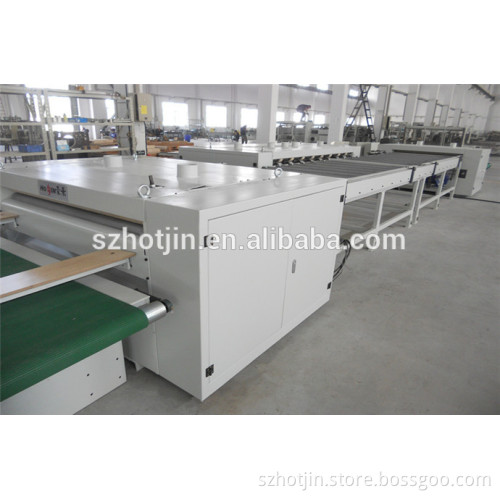

Transverse multi rip saw

Specifications HJC series multi rip saw line main function is cut big board into small boards;Transverse multi rip saw HJC25-3/4;

HJC series multi rip saw line main function is cut big board into small boards;it can work with the front and the back of automatic loading and unloading systemto finish automatic feed in and feed out. Main model:Transverse multi rip sawHJC25-3/4;

Technical parameters	Transverse multi rip saw
Model	HJC25-3	HJC25-4
Working width(mm)	2460	2460
Working thickness(mm)	6-25	6-25
Board straightness(mm/m)	<=0.2	<=0.2
Saw blade outside dia. Inside dia.(mm)	300-30	300-30
Driving motor power(kw)	1.1	1.1
Feeding speed(m/min)	10-45	10-45
Main motor power(kw)	9	12
Spindle rotate speed(r/min)	2870	2870
Working table height(mm)	950	950
Weight(T)	2.5T	2.6T
