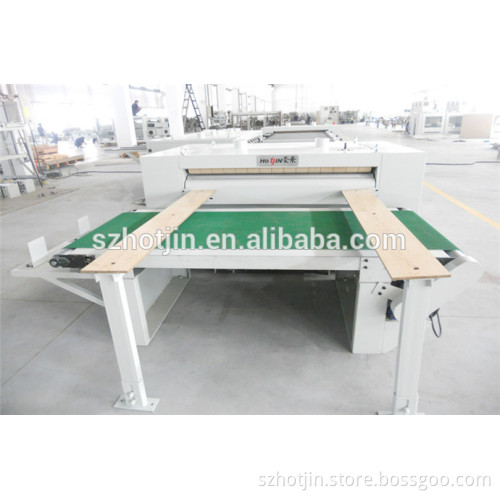

HJC Multi Rip Saw Line

Specifications HJC series multi rip saw line main function is cut big board into small boards.

HJC series multi rip saw line main function is cut big board into small boards; it can work with the front and the back of automatic loading and unloading system to finish automatic feed in and feed out.Main model:Transverse multi rip saw HJC25-3/4; longitudinal multi rip saw HJC12-1,HJC12-2 and HJZ15 and so on.Convinient and safe for operation,it features energy saving of high effciency.

Technical parameters	HJC25 Series	HJC12 Series	HJZ Series
Workpiece width(mm)	2500	1250	1500
Working thickness(mm)	6-25		6-50
Qty of saw blade	3/4	4-13	unlimited
Feeding speed(m/min)	10-30	10-30	10-50
Power of cutter shaft(KW)	3/5.5	15/18.5	30-90
Height of working table(mm)	950	900	1125
