Automatic Double-End Tenoners

Specifications The new LTK series was developed on the basis of LT series products. With motor-driven bidirectional adjustable working width .

            Automatic Double End Tenoner was developed on the basis of LT series products. With motor-driven bidirectional adjustable working width (i.e., adjusting via ruler, cutter axis, holding block at lower knifepoint ), it features in the stability and the narrow material processing advantage of a monorail machine, as well as the convenience in adjustability of double end milling machine, thus gaining fine reputation among users.

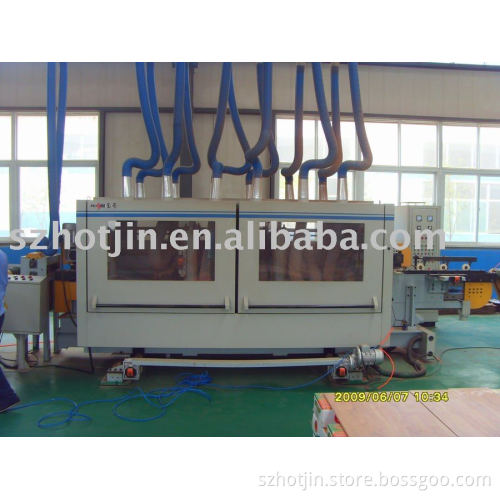

LTK01-10D		10-axis longitudinal monorail bi-directional
		adjustable double end tenoner machine
Working width(mm)	90-200	Numerical display precision(mm)	0.02
Working thickness(mm)	6-18	Gas pressure(bar)	4
Rotate speed of cutter shaft(rpm)	7000	Working voltage(v)	380+5%/50HZ
Power of feeding motor(kw)	5.5	Total power(kw)	57.7
Feed speed(m/min)	30-60	Gross weight of equipment(kg)	7500
Power of station 1(kw)	5.5	Axis dia.of station 1-5(mm)	40×75
Power of station 2(kw)	5.5	Power of upward driving motor(kw)	1.1
Power of station 3(kw)	8	Sweep-up dia.of cutter cover(mm)	120
Power of station 4(kw)	3	Sweep-up dia.of driver chain(mm)	100
Power of station 5(kw)	3	Height of working surface of table(mm)	1100
Cutter dia.(mm)	200-250
Remark:1.Monorail adopted for conveyance.
2.Our company reserves the right to make further technical improvement.
