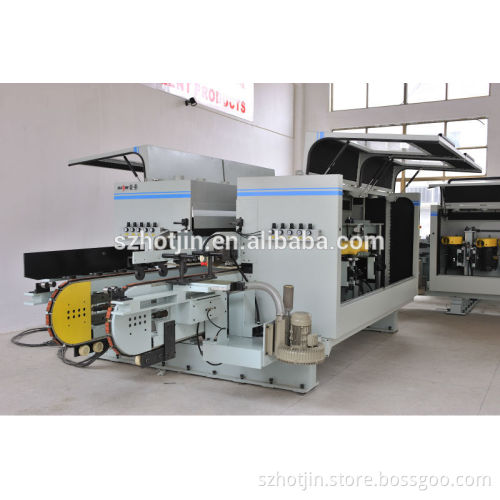

Longitudinal two-track double end tenoner

Specifications woodworking machinery

It has gain good application of flooring length edge processing.

woodworking machinery Longitudinal double end tenoner adopts high-precision feeding chains,built-in pressure shoes device,adjustable pressure,wide process range,so this machine has specialties with high speed, high output and high precision,it has gained good application of flooring length edge peocessing,it wide apply to wood floor,bamboo floor,plastic floor,gypsum board,fibre cement board,and all kinds of panles' processing.The cutter shaft have four stations(8 shafts),five stations(10 shafts)  and six stations(12 shafts),the other requires can make to order.

Technical parameters	DTLS Series	DTE Series
Workpiece width(mm)	120-600	120-600 90-600(DTEZ  Narrow chain)
Working thickness(mm)	3-25
Qty of Station/cutter shaft	4 or 5	5 or 6
Feeding speed(m/min)	40-80	50-100
Power of cutter shaft(KW)	5.5/8	5.5/8/11
Height of working table(mm)	1100
