PVC floor production line

Specifications Our company is a professional production of PVC /LVT floor production line manufacturer.

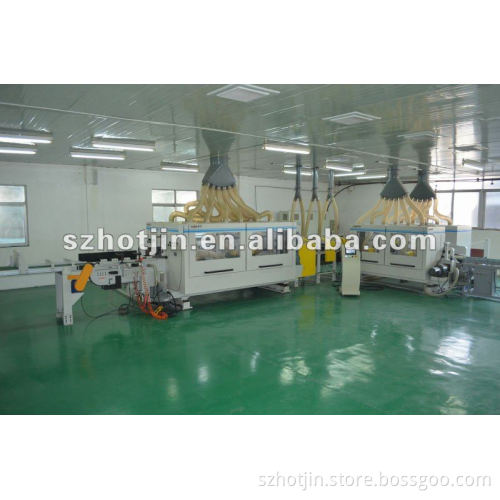

  PVC(LVT)Floor   Double End Tenoning production line   (Model: DTE+ DTEH)             Major equipment on the following:   A.Feeding Rolling Table (front) (GTB.1):Positioning separation, multi-sheet after a separation then a subsequent transportation to the next procedure.   B. Longitudinal Double End Tenoner Machine (DTE):A pair of vertical sheet molding, five of the 10 axis preparation. Precision control for the level of bad 0.02-0.05 mm, straightness 0.05 millimeters per meter.   C. Longitudinal Brush Dust Machine (SGP01):In vertical slotted right after brushing the surface of the work piece with ash.   D. Feeding Rolling Table (central) (GTB.2):Vertical processing will be completed sheet into the next process.   E. Automatism Feeding Rack (GT):Right transportation to the plate in the precise location of a single-chip stocks after separation into the next process.   F.Electrical Control System (GT.D): The coordination of the whole production line control.   G. Transverse Double end Tenoner Machine (DTEH):The two ends of a pair of sheet molding. Precision control for the level of bad 0.05 mm, straightness 0.05 millimeters per meter, vertical degrees of 0.05 mm / 100.   H. Feed out belt conveyor:From transverse DET machine feed out boards and then convey.   I. Longitudinal Brush Dust Machine (2) (SGP02):In vertical slotted right after brushing the surface of the work piece with ash.       Feeding Rolling Table (front)       1.Length: 2400 mm   2.Width: 600 mm   3.Speed: Can Adjust, 30-80 m/min   4.Motor Power: 1.1 KW   5.Weight: 200 KG   Longitudinal Double End Tenoner Machine       Longitudinal Double Chain DET (Model: DTE06-12D)       1.Working width: 100-600 mm   2.Working thickness: 4-20 mm   3.Height of working surface of table: 1100(Mainframe All Height 1100 mm)   4. Rotate speed of cutter shaft: 6000-7000 rpm   5.Feeding speed: 30-80 m/min             6.Motor Power: DTE06-12D   Station 1, 2 main spindle motor:    4X8 KW   Stations 3,4,5,6 milling spindles: 8X5.5 KW   7.Feed-in Motor:               7.5   KW   8.Cutting Tool Diameter: Φ250-Φ280XΦ40             Cutting tools such as compact sets up a hydraulic motor in need of special note. To ensure 80 meters per minute processing capacity, the proposed use of hydraulic sets up tight.   9.Dust Absorbing Inlet Diameter   Stations 1, 2 , 3 , 4 ,5,6: Φ120mmX12   Transmission chain dust absorbing: Φ100mm   10.Weight:        9000 KG       Longitudinal Brushing Machine   (SGP01)   1.Width:   600 mm   2.Height: 1100 mm   3.Power:   1.1 KW 4.Weight: 100 KG       .Feeding Rolling Table (central)       1.Length: 2400 mm   2.Width:600 mm   3.Speed: Can Adjust,30-80 m/min   4.Motor Power:1.1 KW   5.Weight: 200 KG                 Transverse Double End Tenoner Machine   (DTEH18-12D)
1.Working length: 600-1800 mm (special configuration working length:400-2500mm)   2.Working Width: 90-600 mm   3. Working thickness: 4-20 mm   4.Height of working surface of table: 950 mm (Mainframe All Height 1100 mm)   5.Rotate speed of cutter shaft: 6000-7000 rpm   6.Feeding Speed: 15-40 m/min          7.Motor Power:   Station 1, 2 ,3,4,5,6 milling spindles: 12X5.5   KW                Feed-in motor:          7.5   KW                Width adjusting motor: 1.1   KW   7.Cutting Tool Diameter:Φ220-Φ250XΦ40      Cutting tools such as compact sets up a hydraulic motor in need of special note.   8.Dust absorbing inlet diameter:        Stations 1, 2, 3, 4, 5,6:           Φ120mmX12   Transmission chain dust absorbing: Φ100mmX2   9.Weight:       9500 KG                                                                                            Brushing Machine   (SGP02)   1.Width:   600 mm   2.Height: 800 mm   3.Power:   1.1 KW   4.Weight: 100 KG                                                                 Else         1.The left-standard connection, customers can specify. Standard plate production capacity of 1,800,000 square meters.          2.High-speed lines need cleaning winds up to 30 meters per      second for good. Cutting tools use of hydraulic sets up tight.         3.The maximum processing speed is 4.5mm standard plate, is the cutting of thick plate to reduce speed in proportion.        4.Some parameters can be change under the customer's request.        5.Delivery Time:70 working days.   Packaging Details: wood packing (2*40GP)            Payment Terms: T/T (FOB Shanghai).   Please contact us if you have other special requirements or configurations.
