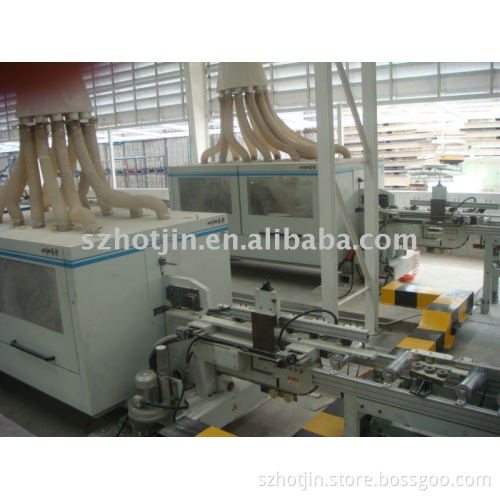

Automatic flooring line

Specifications This line the speed is 100m/min, can use to produce all kinds of flooring.

 Major equipment on the following: A. Feeding Rolling Table (front) (GTB.1): Positioning separation, multi-sheet after a separation then a subsequent transportation to the next procedure. B. Longitudinal Double End Tenoner Machine (LT/DTL): A pair of vertical sheet molding, five of the 10 axis preparation. Precision control for the level of bad 0.02-0.05 mm, straightness 0.05 millimeters per meter. C. Longitudinal Brush Dust Machine (SG): In vertical slotted right after brushing the surface of the work piece with ash. D. Feeding Rolling Table (central) (GTB.2): Vertical processing will be completed sheet into the next process. E. Automatism Feeding Rack (GT): Right transportation to the plate in the precise location of a single-chip stocks after separation into the next process. F. Electrical Control System (GT.D): The coordination of the whole production line control. G. Transverse Double end Tenoner Machine (DTS): The two ends of a pair of sheet molding. Precision control for the level of bad 0.05 mm, straightness 0.05 millimeters per meter, vertical degrees of 0.05 mm / 100.
