Laminated Flooring Production Equipment

Specifications 1.5+5 laminated flooring production line

2.Performance may be improved by changing local configuration.

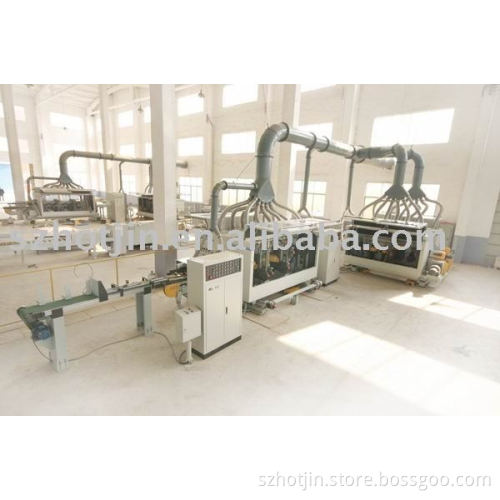

Laminated  Flooring Production Line(5+5 Hotjin FPR, the tongue and groove type milling line of new-type laminate floor and multi-layer wood (bamboo wood) composite floor is of automation during the whole process. The master machine is of track-through type with highly intensive U-shaped guide rail, which ensures the operational linearity and the synchronicity of double rails. 5+5 production line The front and middle rolling tables are both of stepless adjustable motor-driven belt conveyance, featuring in simple structure and easy speed control. Besides, there is photoelectric switch with multi-point control and several limit switches in the steering storage bin, which ensures the smoothness and safety of production line. The feeding process of the whole line is controlled uniformly. If there is any error, the whole line will stop working, thus improving the safety and reducing the reject rate.  Major equipments: front roller table→longitudinal monorail double end milling machine→longitudinal brushing machine→middle roller table→automatic feed bin→traverse double end milling machine Major parameters: longitudinal feeding speed: 25-50 m/min; working width: 120-200 mm; total power: 80KW. Remark: Performance may be improved by changing local configuration. Please contact us if you have other special requirements or configurations.
