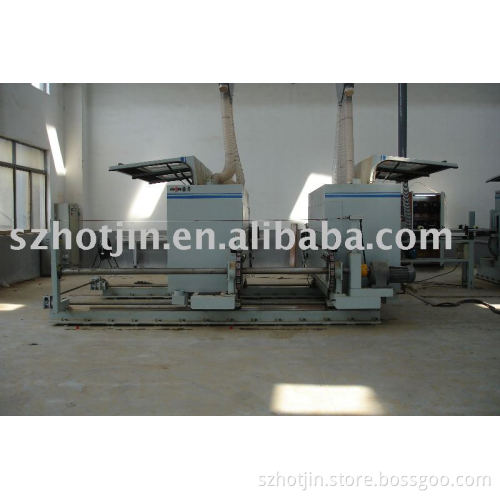

MDF and HDF flooring production line

LTK01-10D

10-axis longitudinal monorail bi-directional

adjustable double end tenoner machine

Working width(mm)

90-200

Numerical display precision(mm)

0.02

Working thickness(mm)

6-18

Gas pressure(bar)

4

Rotate speed of cutter shaft(rpm)

7000

Working voltage(v)

380±5%/50HZ

Power of feeding motor(kw)

5.5

Total power(kw)

57.7

Feed speed(m/min)

30-60

Gross weight of equipment(kg)

7500

Power of station 1(kw)

5.5

Axis dia.of station 1-5(mm)

40×75

Power of station 2(kw)

5.5

Power of upward driving motor(kw)

1.1

Power of station 3(kw)

8

Sweep-up dia.of cutter cover(mm)

120

Power of station 4(kw)

3

Sweep-up dia.of driver chain(mm)

100

Power of station 5(kw)

3

Height of working surface of table(mm)

1100

Cutter dia.(mm)

200-250

Remark:1.Monorail adopted for conveyance.

       2.Our company reserves the right to make further technical improvement.

DTS15-10D

MDF floor high-speed traverse

double end tenoner machine

Working width(mm)

400-1500

Rotate speed of cutter shaft(rpm)

6000-7000

Working thickness(mm)

6-15

Power of feeding motor(kw)

3.7

Feeding speed(m/min)

25-40

Gross weight of equipment(kg)

7000

Power of station 1(kw)

5.5

Axis dia.of station 1-5(mm)

40×75

Power of station 2(kw)

5.5

Sweep-up dia.of cutter cover(mm)

120

Power of station 3(kw)

3

Sweep-up dia.of driver chain(mm)

100

Power of station 4(kw)

3

Cutter dia.(mm)

200-250

Power of station 5(kw)

5.5

Height of working surface of table(mm)

950

Remark:1.D-random axis,T-jumping cutter,the working width can be adjustedto 2.5m,Other specification is upon customer requipment.

       2.Our company reserves the right to make further technical improvement.
