Transverse DET

Specifications wood working machine

It is mainly used in the forming processing of plate's short side,

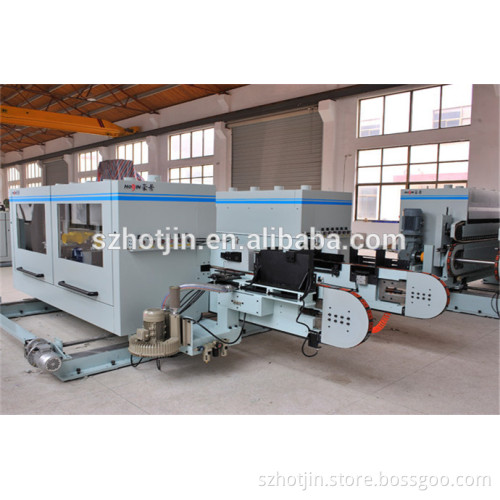

wood working machine Transverse series is mainly used in the forming processing of plate's short side, our company transverse double end tenoner have DTX and DTS series,they are light-duty double end tenoner machine, they have high efficiency and strong  practicablility, it,s an economical model machine suitable for the medium and small-sized enterprises,This model machine has been enthusiastically welcomed and favored by the customers immediately since it was firstly released; We install adjustable pushing device on the left and right two high precision feeding chains of transverse double end tenoner to ensure vertical precision of processed plates and guide edge, in the front has stock bin controlled by photoelectricity,so that it can automatic loading expediently.According to panel’s feature,each station can match jumping knife,scraper knife,up and down saw, polishing and so on function shafts,as well as can reserve spacing station.Max.working width standard have 1500mm and 2500mm.The other requires can make to order. High equipment DTH series is our company new products(heary-duty equipment),it has more stable,convenient,and advanced advantage.

Technical parameters	DTX Series	DTS Series	DTH Series
Workpiece width(mm)	400-1500/2500
Working thickness(mm)	3-25
Qty of Station/cutter shaft	4	5 or 6	5,6 or 8
Feeding speed(m/min)	20-40		20-50
Power of cutter shaft(KW)	3/5.5		3/5.5/8
Height of working table(mm)	950
