Stand-up Bag packing Machine

Specifications Stand-up Bag packing Machine

bag packing machine

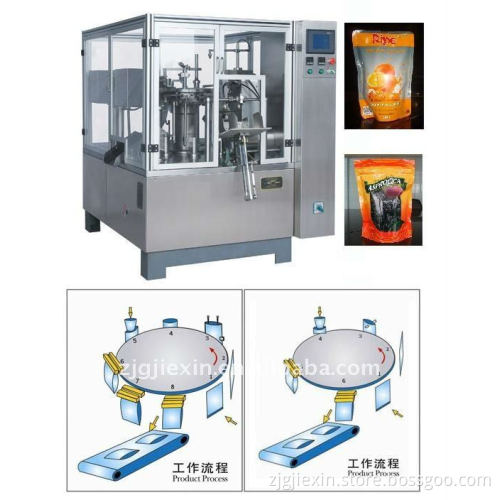

Vertical Pre-made Packing Machine

Applicable scope:1,Solid Species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles,puffed food etc. 2,Granule Species: grain, refined monosodlum glutamate, granular drug, capsule, seed, chemistiy condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc. 3,Powder species: milk powder, grape sugar, washing powder, chemistry condiment, refined sugar, pesticide, fertilizer etc. 4,Liquid Species & Thick liquid Species: detergent, millet wine, soy sauce, vinegar, fruit juice, drink, tomato sauce, peanut butter, Jam, chili sauce, bean sauce etc. 5,Materials that can pack in bag. Performance characteristics: 1, Mitsubishi PLC, touch screen and MSMMI system ensure the operation convenient and safe. 2, Adopt Mitsubishi VVVF system, can optionally adjust speed in rated range. 3, Auto-detection function: If pouches are not open enough, do not feed materials and sealing that avoid waste materials and economize production cost. 4, Advanced fault detection device: When working air pressure is abnormal or devices (heating pipe etc.) have fault, it will alarm. 5, Horizontal bag-giving model: bags can be loaded more and easy to molding and opening. 6, Some parts adopt imported Engineering Plastics bearing, do not need to oil, reduce the material pollution. 7, Adopt no-oil vacuum generator, avoid production environment pollution. 8, Zipper-bag opening device: specially designed for zipper bags, avoid lura broken problem. 9, Using prefabricate packing bag that have perfect surface and seal, low wastage and high level. 10, Measure up to hygienic standard of food processing industry, all parts that may contact with materials or packing bags are made by stainless steel or other food hygienic standard measuring up materials, ensure the products’ safe and hygienic. 11, Wide packing application: through selecting different quantifier and filler, it can be applied in liquid packing, paste packing, granule packing, powder packing, irregular lump packing etc. 12, Wide suitable scope: it is suitable for prefabricated bags, paper bags made by complex film, PE, PP etc.   Technical parameters:

Items / Model	JX6-200	JX8-250
Min. Pouch Size	90mm(W)x90mm(L)
Max. Pouch Size	200mm(W)x300mm(L)	250mm(W)x300mm(L)
Filling Volume	≤1000ml	≤1200ml
Working position of machine	Six-working station	Eight-working station
Capacity	≤45 sachet/min(the speed by packaging different and filling weight )
Pouch Format	Flat pouch  Stand up pouch   zipper pouch   Shaped pouch
Filling Station	1	2
Electrical Consumption	2kw	3.5kw
Electrical Requirement	380V/220V  3 phase  50Hz/60Hz
Operation Pressure	0.6Mpa
Air Consumption	400NL/min
Weight	1000kg	1200kg
Main Machine Size	1800mm(L)x1500mm(W)x1500mm(H)	2300mm(L)x1800mm(W)x1650mm(H)
