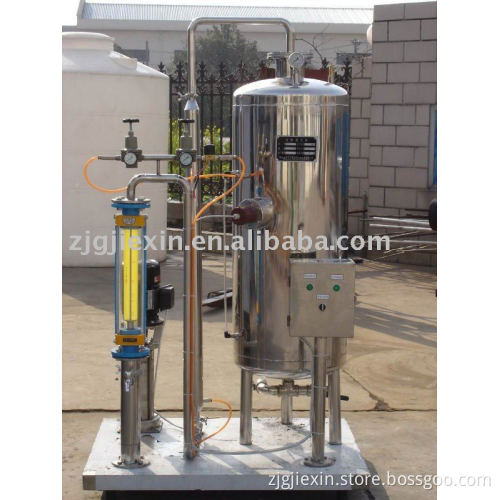

Automatic Drink Mixer

Specifications Automatic Drink Mixer

1.mix syrup, water and CO2 in one time

2.PLC control.

3.Stainless Steel

4.capacity:1000-6000L/h

Automatic Drink Mixer Main Features: 1.This Drink mixer adopts advanced gas-liquid mixing device, can mix syrup, water and CO2 gas at the same time for filling machine. 2.Also it can apply to thin beer, aerate for beer and produce sparkling wine. 3.Drink mixer is advanced in technology, even in mixing, reliable in performance, compact structure, easy in operation. 4.Automatic Drink Mixer  is suitable for aerated beverage firm of large, middle or small scale.   Automatic Drink Mixer
1.mix syrup, water and CO2 in one time
2.PLC control.
3.Stainless Steel
4.capacity:1000-6000L/h

Main Technical parameters
Model	QHS-1500A	QHS-3500A	QHS-3000	QHS-5000
Capacity(L/hr.)	1000-1500	2000-3500	2000-3000	4000-6000
Gas content in beverage(GV)	1.5-2.5	1.5-2.5	>3.0	>3.0
Mixing range(syrup-water)	1:3-1:6
Temperature in chilled water	0-5°C
Water dexidization method	Deoxidized by CO2
Working pressure of pre-carbinat tank and syrup tank	0.05-0.08
Working pressure in storage tank(Mpa)	0.2-0.5
Powe supply(Kw)	1.1	1.5	3.7	5.2
Overall dimension(mm)	900×700×2000	1100×900×2100	1600×1200×2100	2000×1500×2200
weight(kg)	500	650	1200	1800
