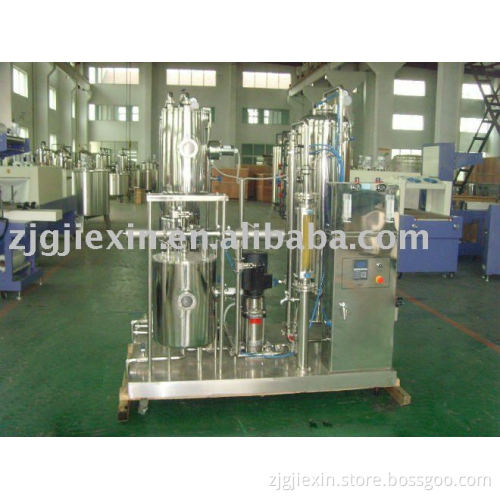

Mixers

Specifications Mixers

  mainly applicable for mixing water-syrup-CO proportionally in beverage industry. could proportionally mix syrup, additive, drink water and CO into finished beverage before bottling. could thin beer or aerate beer or produce sparkling wine before bottling. suitable for all kinds of beverage manufacturers with large or small scales.

Main Technical parameters
Midek	QHS-1500A	QHS-3500A	QHS-3000	QHS-5000	QHS-7000	QHS-10000	QHS-15000
Capacity	1000-1500	2000-3500	2000-3000	4000-6000	8000-9000	10000-12000	12000-16000
Mixingrange	1:3-1:6				1:3-1:6
Gascontentinbeverage	1.5-2.5	1.5-2.5	≥3.0	≥3.0	≥3.5	≥3.5	≥3.5
Temperatureinchilledwater	0-5ºC				0-4ºC
Waterdeoxindizationmethod	Deoxidized by CO2				Deoxidized by vacuum system
Working pressure ofpre-carbination tank and syruptank	0.05-0.08				Pre-carbonation tank : -0.05 to -0.06Mpa Syrup tank: -0.05 to -0.08Mpa
Workingpressureinstoragetank	0.2-0.5				0.2-0.5
Powersupply(MPa)	1.1	1.5	3.7	5.2	8.5	11	15
Overalldimension	900×700 ×2000	1100×900 ×2100	1600×1250 ×2100	2000×1200 ×2100	3200×2100 ×2500	3800×2200 ×2750	4300×2200 ×2550
Weight(kg)	500	650	1200	1800	2800	4800	6500
