Soft drinks machine

Specifications Soft drinks machine

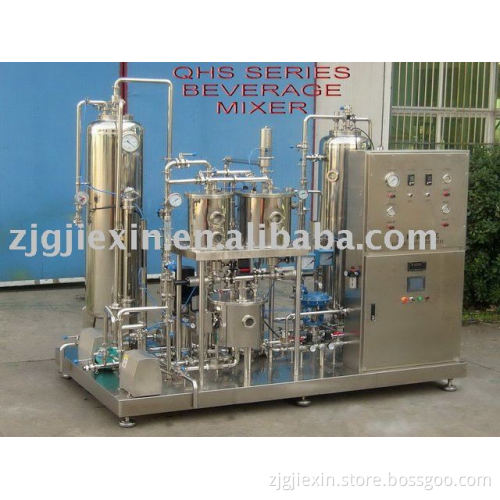

Beverage Mixer

Production capacity:1000-16000BPH

  Soft drinks machine, which were developed pn the base of advanced similar technologles abord, are mainly appliciable for mixing water-syrup-CO2 proportionally in beverage industry. Soft drinks machineis the most advanced Beverage Mixer in this field at present.  There is a set of advanced water-gas mixing device on the machine. This Soft drinks machine could proportionally mix syrup, additive, drink water and CO2 into finished beverage before bottling. The Soft drinks machine also could thin beer or aerate beer or produce sparking wine before bottling.

Model	QHS-1500A	QHS-3500A	QHS-3000	QHS-5000	QHS-7000	QHS-10000	QHS-15000
Capacity(L/hr.)	1000-1500	2000-3500	2000-3000	4000-6000	8000-9000	10000-12000	12000-16000
Gas content in beverage(GV)	1.5-2.5	1.5-2.5	>3.0	>3.0	>3.5	>3.5	>3.5
Mixing range(Syrup-water)	1:3-1:6				1:3-1:6
Tempeature in chilled water	0-5ºC				0-4ºC
Water deoxidization method	Deoxidized by CO2				Deoxidized by vacuum system
Working pressure of pre-carbination tank and syrup tank(Mpa)	0.05-0.08				Pre-carbonation tank:-0.08~-0.06 Syrup tank:0.05~0.08
Working pressure in storage tank(Mpa)	0.2-0.5				0.2-0.5
Power supply(kw)	1.1	1.5	3.70	5.2	8.5	11	15
Overall dimension(mm)	900*700*2000	1100*900*2100	1600*1200*2100	2000*1500*2200	3200*2100*2500	3800*2200*2750	4300*2200*2550
Weight(kg)	500	650	1200	1800	2800	4800	6500
