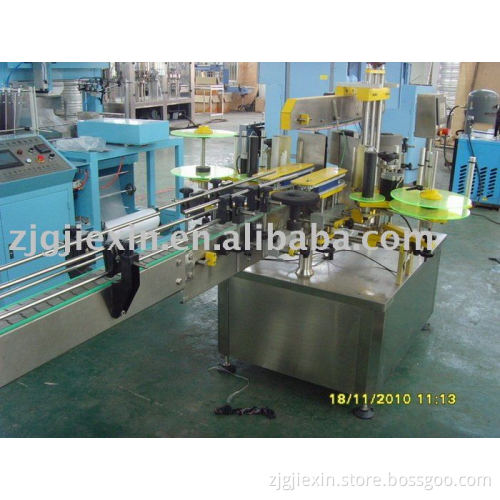

Labelling Machine (TB SERIES)

Specifications Labeling machine for bottles

Production capacity: 200-500BPH

Performance:
1. The Labelling Machine is made of stain-steel and high quality Aluminum alloy, structiom in reason, struction in reason, tighteen, adjistment conveniently.
2. Not need ground feer bolts, move conveniently, flexible assort production field.
3. Shrink film volume label frame, according different volume label paper pipe adjuated range5"-10". 4. Transmission machine can be adjusted conveniently without tools, which make it more suitable for bottle sizes.
5. Forced insertion design proves reasonable and convenient.
6. Volume label cut of measuresystem ensure small error. 7. Special designed knife plate is changefree with the related specifications.
8. Newel nip system, chang and installation rapidly without tools.
9. Disport bottle screw, located strap, stransport chain adopts synchronization adjust model, adjust facility.
10. Introduce Japanese seryo motor and high-delicacy photoelectricity, the length of cutting label is precision.

Model	TB-150	TB-250	TB-350	TB-450
Dimensions(L*W*H)(mm)	2400*1000*2200	2440*1000*2200	2440*1000*2200	2440*1000*2200
Weight(kg)	600	600	700	800
Electric power	AC3-Phase 220V/380V
Speed	UP to 200BPM	UP to 300BPM	UP to 400BPM	UP to 500BPM
Hight	MAX 320mm
Diameter	φ 50-φ 110
Materials	GLASS. METAL PLASTIC
Shapes	ROUND. OVAL. SQUARE. RECTANGLE
Materals	PVC. PET. OPS. OPP
Thickness	0.035-0.10mm	0.035-0.10mm	0.035-0.10mm	0.035-0.10mm
Length	MAX 150mm	MAX 150mm	MAX 200mm	MAX 200mm
Flat width	MAX 175mm	MAX 175mm	MAX 175mm	MAX 175mm
