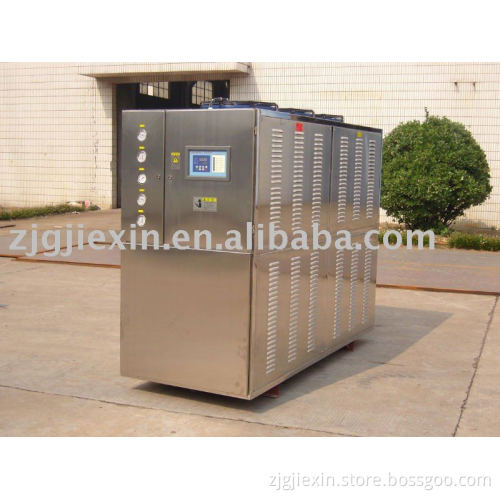

Water Chilling Unit

Specifications Water Chilling Unit

chilling machine

chilling unit

Safty

Efficient

The Water Chilling Unit adopts M series enclosed computer(Original unit from France), plate heat exchanger(braze welding) and quto control system, to realize fast cool down normal water to 5°c, and control final water tempuature within 2-5°c(±2°c). It is a chief chilling equipment to produce soda water, cola, sparkling wine and fresh milk. The Continuous Type Water Chilling Unit has characteristic of large chilling capacity, no leakage and high qutomation.

Model	LSJ-1500	LSJ-3000	LSJ-4000	LSJ-5000	LSJ-7000	LSJ-10000	LSJ-15000
Output(m3/h)	1-1.5m3/h	2-3 m3/h	4 m3/h	4-5 m3/h	6-7 m3/h	8-10 m3/h	12-15 m3/h
Chilling Capacity(Kcal)	30000	60000	80000	100000	150000	210000	320000
Temp. of water inlet(°C)	Less than 25°C	Less than 25°C	Less than 25°C	Less than 25°C	Less than 25°C	Less than 25°C	Less than 25°C
Temp. of water outlet(°C)	2-5°C	2-5°C	2-5°C	2-5°C	2-5°C	2-5°C	2-5°C
Power of compressor(kw)	10	20	30	35	50	70	90
Refrigerant	R22	R22	R22	R22	R22	R22	R22
Temp. of chilling water(°C)	Less than 36°C	Lessthan 36°C	Less than 36°C	Less than 36°C	Less than 36°C	Less than 36°C	Less than 36°C
Flowrate chilling water(m3/h)	20	30	40	50	60	80	100
