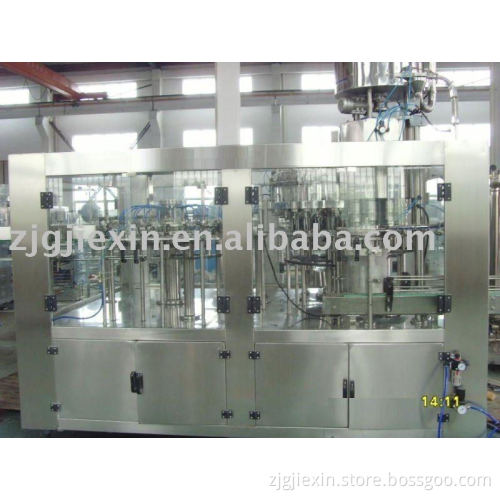

PET Carbonated drinks filling machine (CGFD 24248)

Specifications 1.PET Carbonated drinks filling machine

2.Rinsing Balanced Pressure Filling and Screw Capping Machine

3.Fully automatic and hi

  The Rinsing Balanced Pressure Filling and Screw Capping Machinemachine combines washing, filling and rotary capping functions in one unit, is a fully automatic and high efficieney liquid packing equipment.
 The Rinsing Balanced Pressure Filling and Screw Capping Machine is suitable for packing beverage cintaining gas. Its performance is as following: All parts, for instance, filling value, which directly contact medium are made of stainless steel. So conform to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the techique requirement of users to sterilize the whole machine at high temperature. Using programmable controller to realize fully zutomatic control from bottles entering to finishing packing. Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valvers in order to assure beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quelity.

Model	CGFD16126	CGFD18186	CGFD24248	CGFD32328	CGFD404010	CGFD505012	CGFD 606015	CGFD808020
Filler/Capper heads	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Bottle diameter(mm)	φ=50-100         H=170             330-1500ML			φ=50-110          H=160-340
Production capacity(350ml)(b/h)	2000-4000	4000-6000	8000-10000	10000-12500	12500-15000	16000-20000	20000-24000	26000-32000
Filling temperature ºC	0-5
Filler type	Balanced pressure filler
Spraying pressure(Mpa)	0.2-0.25
Filling pressure(Mpa)	0.15-0.35			0.2-0.4
Motor power(kw)	2.2+0.55+0.12	2.2+0.55+0.18	3+0.55+0.18	5.5+0.55+0.18	7.5	11	15	19
Overall dimension (L*W*H)mm	2300*1600*2500	2600*1920*2550	3100*2200*2800	3850*3000*2850	4850*3800*2750	5750*3550*2750	6500*5500*2750	7680*6640*2650
Weight(kg)	2800	3650	4800	6800	8650	10500	12800	15000
