soda water Filling machine(CGDF)

Specifications soda water Filling machine

1.Filling soda water,soda drink,coca-cola in bottle

2.PLC control

3.output:2000-30000b/h

  soda water Filling machine Feature   1. All parts, for instance, filling valve, which directly contact medium are made of stainless steel. So it conform to the requirements of food sanitation.
2. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature. 3. Soda water drink Machine  Using programmable controller to realize fully automatic control from bottles entering to finishing packing. 4.  soda water Filling machine Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valvers in order to assure beverage quality.
5.  soda water Filling machine Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.   soda water Filling machine  Model:

Model	CGFD16126	CGFD18186	CGFD24248	CGFD32328	CGFD404010	CGFD505012	CGFD606015	CGFD808020
Filler/Capper heads	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Bottle diameter(mm)	Diameter=50-100 H=170 330-1500ml			Diameter= 50-110   H= 160-340
Production capacity (b/h) 350ml	2000-4000	4000-6000	8000-10000	10000-12500	12500-15000	16000-20000	20000-24000	26000-32000
Filling temperature(Celsius)	0-5
Filler type	Balanced pressure filler
Spraying pressure	0.2-0.25			0.2-0.25
Filling pressure	0.15-0.35	0.15-0.35	0.15-0.35	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Motor power	2.2+0.55+0.12	2.2+0.55+0.18	3+0.55+0.18	5.5+0.55+0.18	7.5	11	15	19
Overall dimension(L*W*H)mm	2300*1600*2500	2600*1920*2550	3100*2200*2800	3850*3000*2850	4850*3800*2750	5750*3550*2750	6500*5500*2750	7680*6640*2650
Weight (kg)	2800	3650	4800	6800	8650	10500	12800	15000

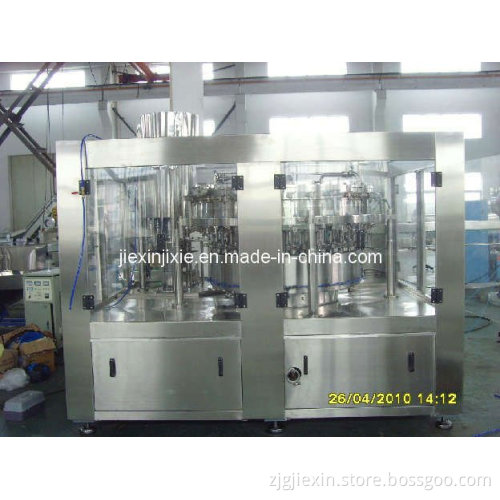

    soda water Filling machine  part picture
