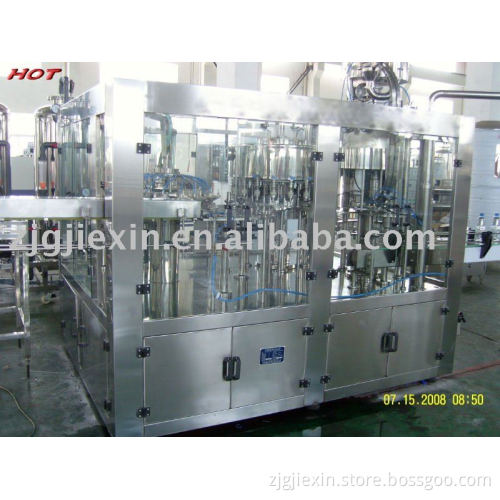

Filling machine

Specifications filling machine /beverage machine /Carbonated beverage Production capacity:1500-13500 BPH

  The filler & capper is deveioped on the basis of digesting, absorbing and improving the advanced technology in troduced from aborad, and up to international level. It is mainly used aerated water and so on. It is advanced in performance, high in production dfficiency, and the speed can be regulated infinitively, it is the ideal equipment for drink factiries of smail and middle scale.

Model	GDF12/4	GDF186	GDF246	GDF328
Number of filling heads	12	18	24	32
Number of capping heads pressing heads	4	6	6	8
Production capacity(b/h)	1500-3500	3000-6000	8000-10000	10000-13500
Bottle type (mm)	H=190-290 Ψ=50-76	Ψ=50-100	Ψ=50-100	Ψ=50-100
Filling pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Max. filling temperature °C	<5	<5	<5	<5
Power (kw)	2.2	3	4	7
Appearance size(mm)	2060*1100*2330	2250*1340*2350	2600*2100*2650	2800*2350*2650
Weight (kg)	2500	3200	4650	5800
