Water liquid Filling machine

Specifications 1.Filling machine

2.Beverage machine

3.Water liquid Filling machine

4.Safty

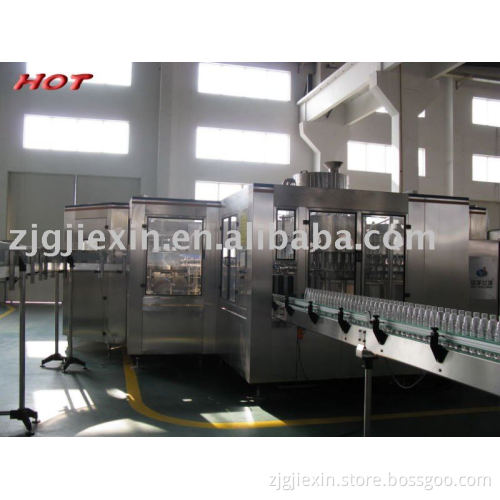

5.Washing Filling and Screw Capping

  The Washing Filling and Screw Capping is a full-automatic multiple-funcition washing, filling and capping unit. It is used in washing, filling and sealing all kinds of no gas contained liquid, such as fruit jujice, oil &vingar, wine, fruit wine, mineral water and pure water.   The washing filling and screw capping line has features of unique design, new stytle, complete fuctions, multipurpose, convenient in operation, beautiful construction, high automaticity. The Washing Filling and Screw Capping is the best filling equipment in China.

Model	CGF16126	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(bottle/hour) (600ml)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
Suitable bottle diameter(mm)	φ=50-110 =170  330-2250ml
Spraying pressure	2~3
Motor power	2.2kw           (Main motor)	2.2kw(Main motor)	3kw   (Main motor)	5.5kw  (Main motor)	7.5kw(Main motor)	11kw(Main motor)	15kw(Main motor)	19kw(Main motor)
Overall dimension(L*W*H) (mm)	2400*1650*2500	2600* 1920*2550	3100*2300*2800	3800*2800*2900	4600*2800*2900	5450*3300*2900	6500*4500*2900	76800*66400*2850
Weight(kg)	2500	3500	4500	6500	8500	9800	12800	15000
